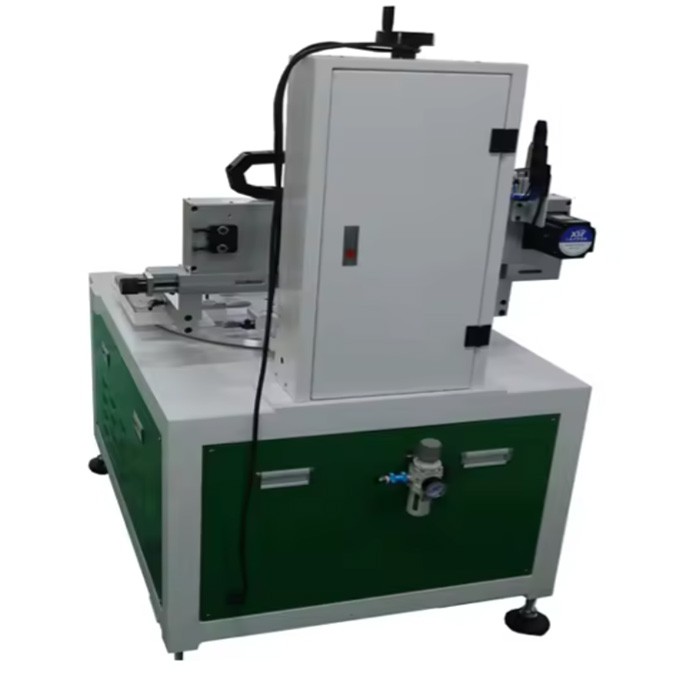

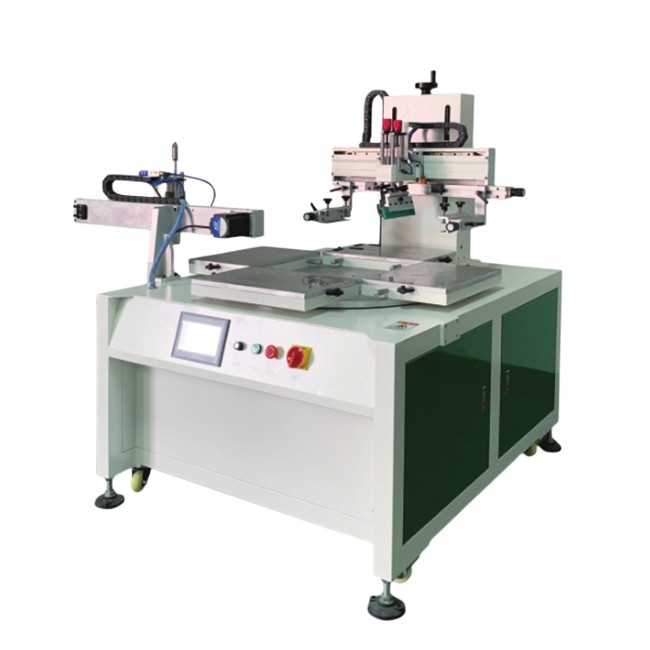

Automatic Rotary Screen Printing Machine

1. The screen up/down lifting is driven by cylinder, combined with high precision linear guide rail,  screen frame up/down lifting adopts guide column,which improve the stability and accuracy of printing.

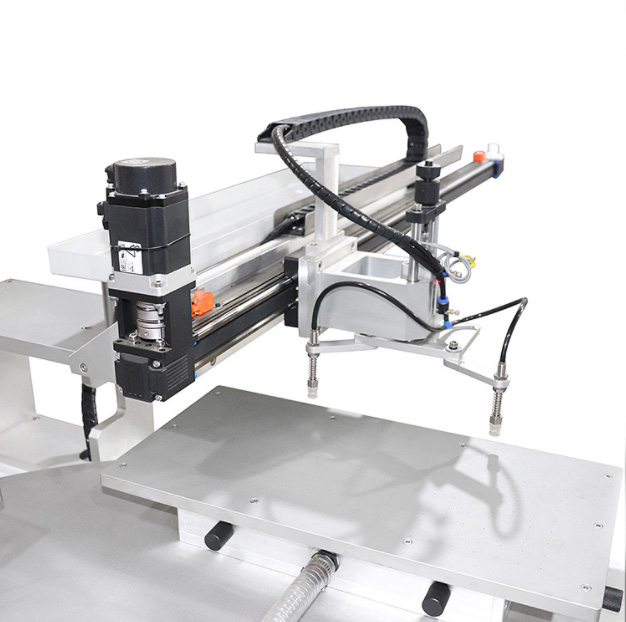

2. The printing base frame adopts stepping motor, which enable machine for fast operation, accurate positioning and digital setting of stroke / speed / direction.

3. The machine frame adopts cast aluminum. The tool holder is guided by air cylinder and guide rail, which is stable and smooth working. The scraper and ink knife are formed by integrated aluminum, which has the advantages of simple structure, convenient use and stable performance.

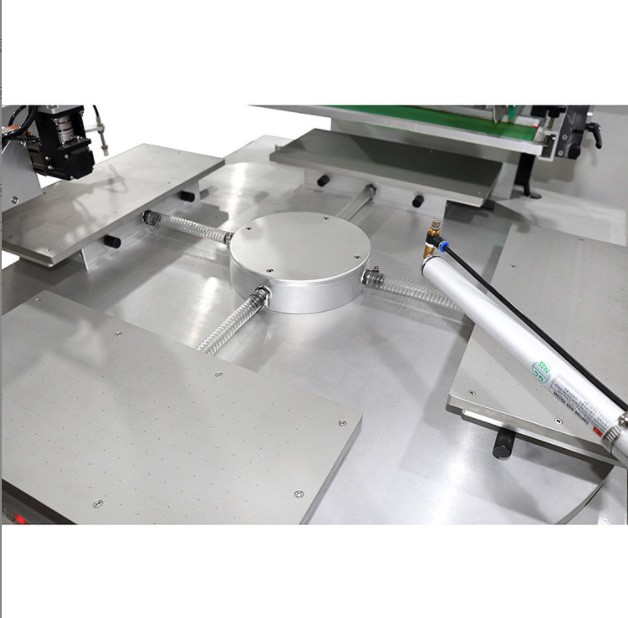

4.The rotary table is driven by Taiwan precision cam splitter, with which has accurate repeated positioning, fast speed. The product positioning is accurate to prevent the product from loosening during rotation. The turntable is integrally formed and processed from cast aluminum.The structure is stable, the rigidity is superior, and the flatness accuracy of the table top is 0.05mm.

5. Mechanical hand can be configured to reduce productivity and improve production efficiency. And the machine could be connected with the production line as per customer requirement.

6.Machine adopts advanced PLC and interface digital control , could set a variety of functions and operating parameters, which is conducive to Operation data, standardization and humanization.

7. Safety pole and safety light curtain can be installed to carefully protect the personal safety of the operator.

8. The oil-free filtered water pressure regulating group does not produce exhaust oil mist pollution and is suitable for use in dust-free rooms.

9. The function program sets the storage function, keeps the memory, and is convenient for next use.

Product introduction

Automatic Rotary Screen Printing Machine is mainly used for printing shoe upper,shoe insoles,Phone touch screen,light panel OGS/TP/CG/LTD glass,PCB,LCD,Liquid green oil, cold light film, film, keyboard, acrylic, cell phone panel, touch panel, light guide plate, diffuser, nameplate, ceramics, stationery, and small film/Precision screen printing products, such as flexible circuits (FPC), in-mold decoration (IMD), membrane keys(Membrane Switch),Bio-test piece... Such products precision print screen printing

Machine operation safety performance

FA-3045P-4T machine is in line with the latest engineering style，If required by the use of absolute trustworthy. Machine is equipped with an emergency switch: press the emergency switch in case of emergency,then machine will be powered off immediately.Back to the starting position, when get out of trouble after the emergency switch, you can start safely back to normal.
