Cylinder Screen Printing Machine

Big-Size Bucket Round Screen Printing Machines

Technical Parameters

Model  No. FA-5A

Max.Printing Area (perimeter x width):1190x200mm

Max.Printing Diameter:5-450mm(380mm for printing on full circle)

Max.Length of Products:400mm

Power:220V 50-60Mhz 200kw

Air Pressure:5-7bar

Transverse Stroke:1200mm

Vertical Stroke:100mm

Max. Printing Speed:1200pcs/hr

Printing Worksatation:1pc

Packing Size(LxWxH):190x105x170cm  300KG

Automatic Grade:Semi-automatic

  • Product Detail
  • Video

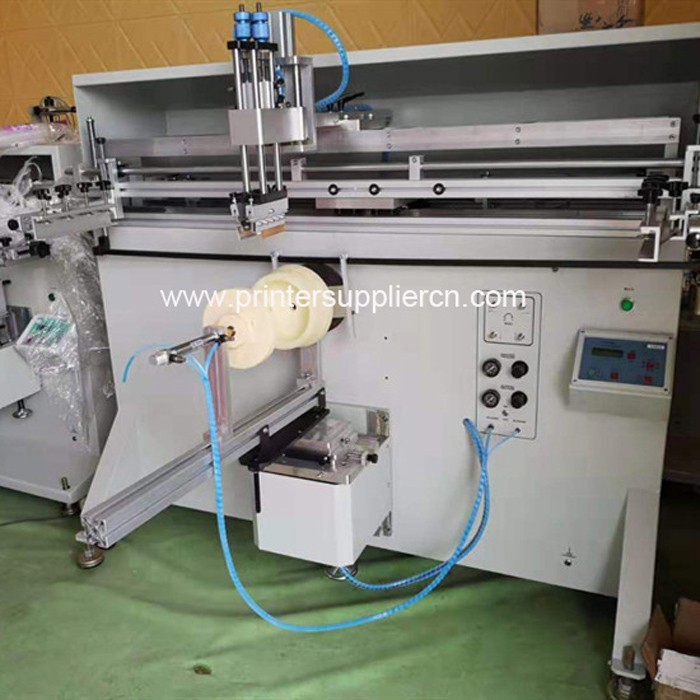

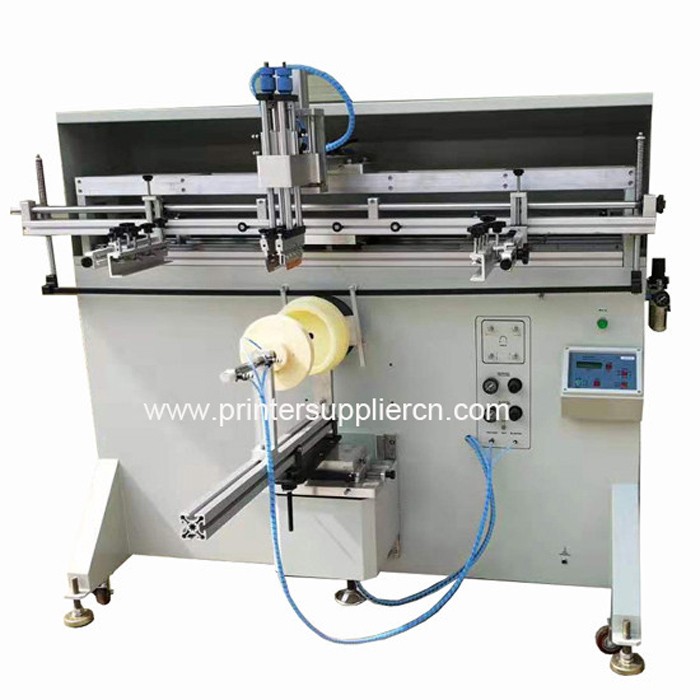

Big-Size Bucket Round Screen Printing Machines

Machine Feature

This is a kind of big size screen printing machine, printing size could be 5-450mm(380mm for printing on full circle). Usually applied in printing big diameter of bucket, pail, barrel etc.

Machine with comprehensive functions. It is capable of printing cylindrical surfaces, conical surfaces and large curved surfaces.

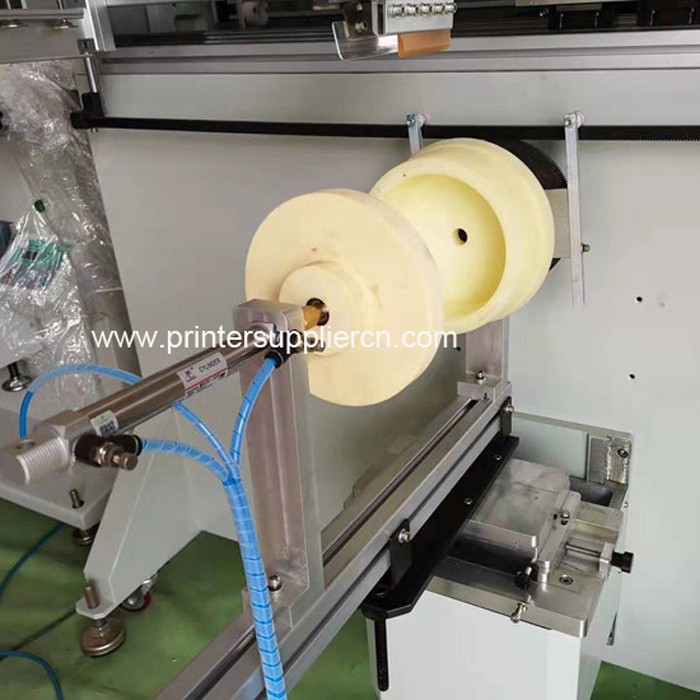

The workbench can be adjusted in left and right, front and back, and angle, which enable the positioning accurate and stable.

With automatic start function, it is more convenient to remove and wash the screen frame.

The left and right movement of the scraper adopts the guide rail structure. It enables the bucket printing to be improved.

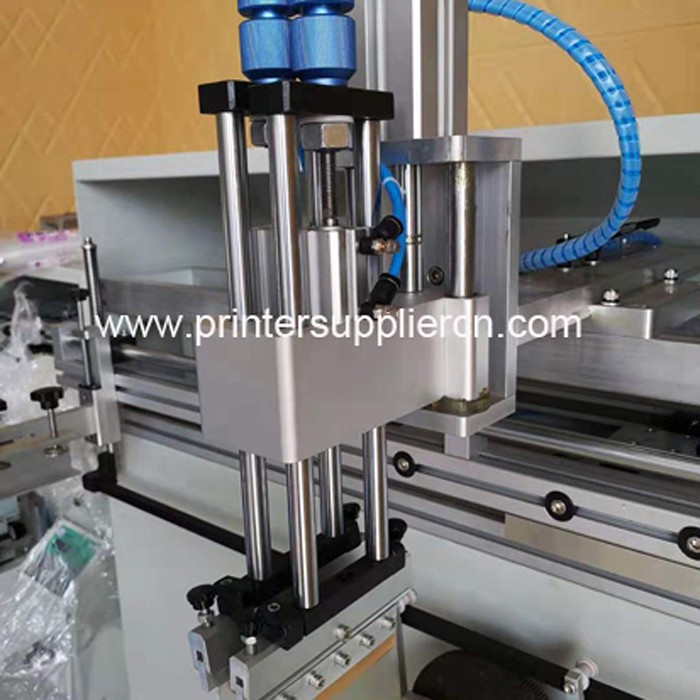

The lifting of the screen frame adopts the movement structure of round steel guide column and guide rail, with high precision and smooth movement.

Function

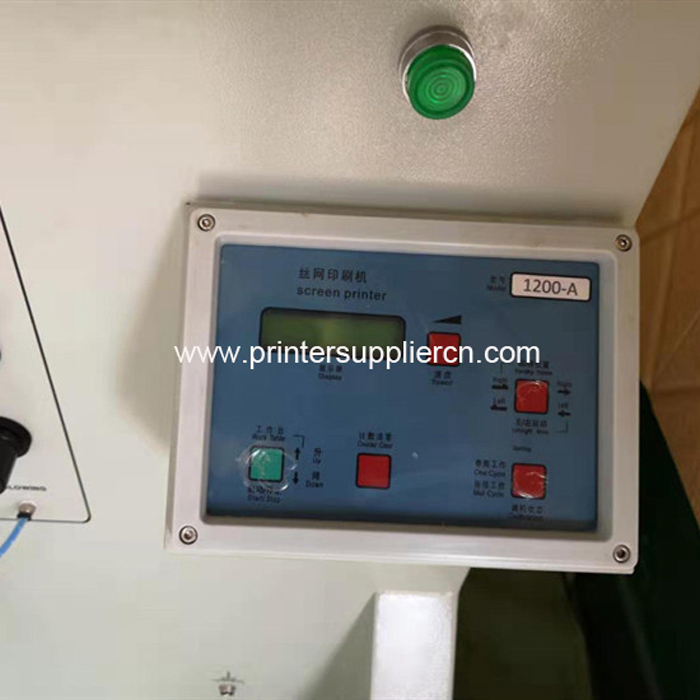

1. Auto 4 digital LED count brings high degree of automation;

2. Micro-computer control system program, ensures printing stablely and accurately

3. Printing stroke and printing speed could be adjusted

4. Work-table could be oriented by vertical, transverse, or level

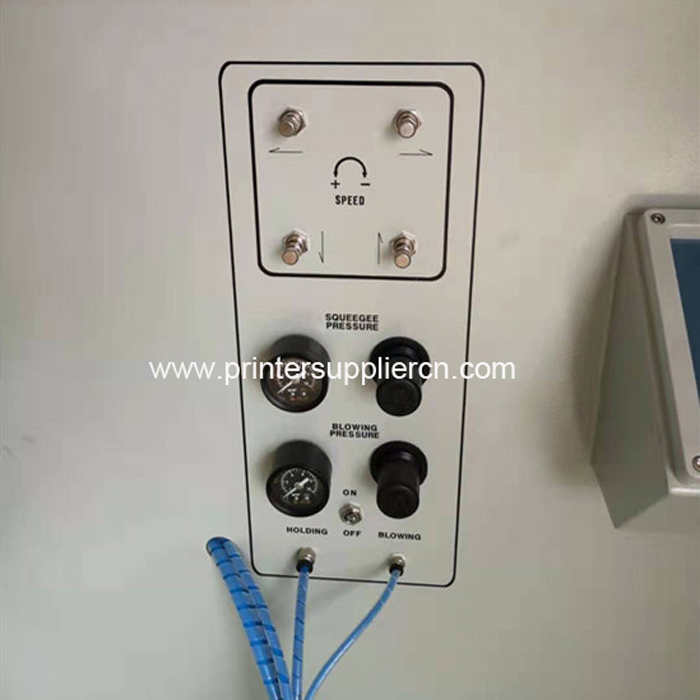

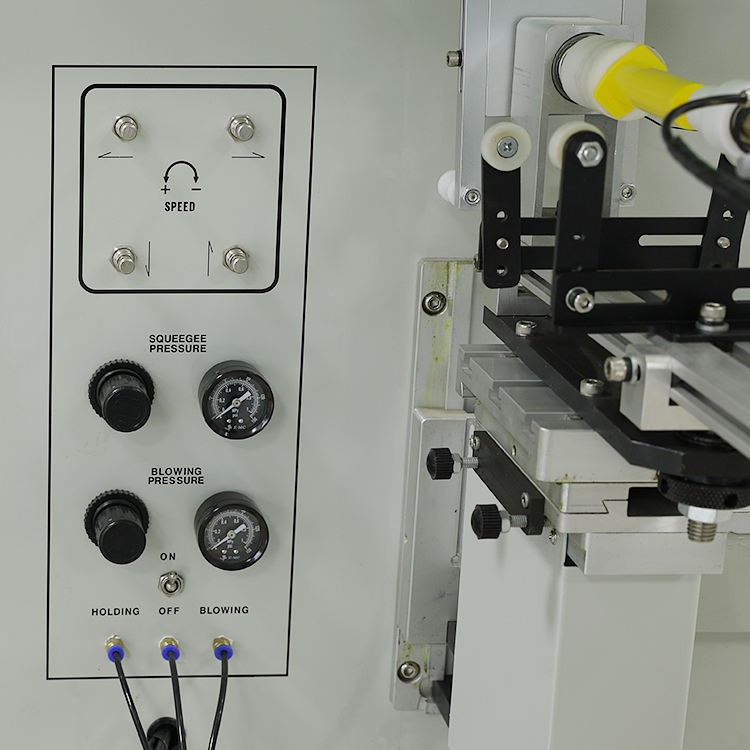

5. Pneumatic self-balance scraper technology and back blade ensures inking evenly pressure and avoid ink wastage.

6. Precite axis control the screening up and down, accuracy up to 0.07mm

7. With the function of ink scraping nonstop without printing in order to prevent the ink from drying

8. With foundation timulation function , it could print on products with soft surface

9. Installation of the German FESTO tubes,German ORGIA rod less cylinders and Japanese SMC ,Korea sensor and perfect alarm system brings best printing effect

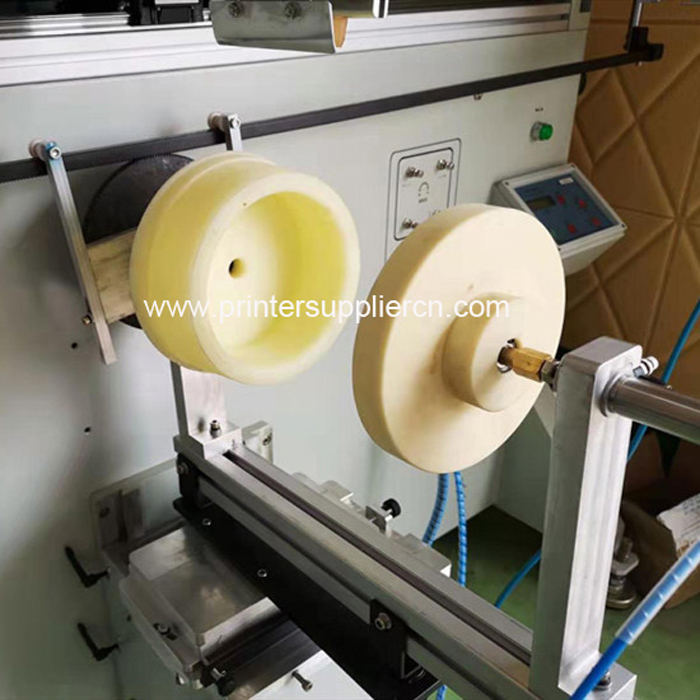

Big-Size Bucket Round Screen Printing Machines

Big-Size Bucket Round Screen Printing Machines

Big-Size Bucket Round Screen Printing Machines

 Round Screen Printing Machines
