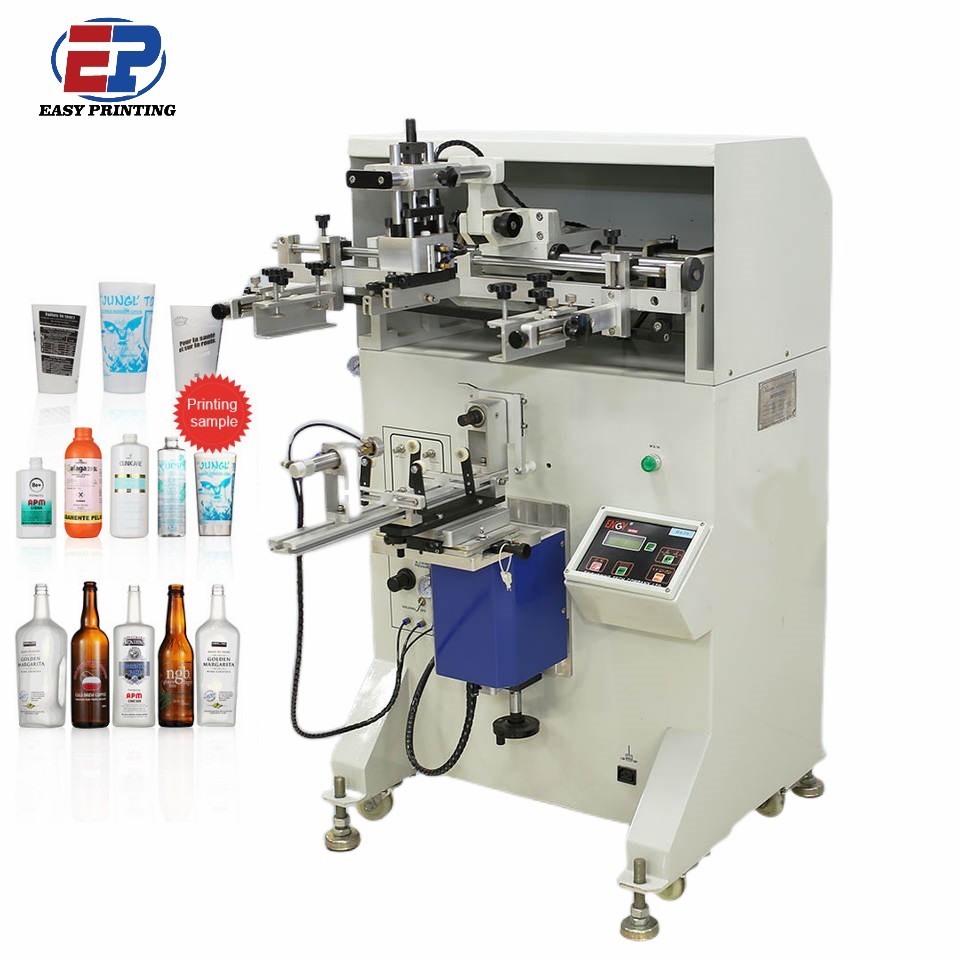

Cylinder Screen Printing Machine

Bottle Cylinderical Screen Printing Machines

Technical Parameters

Model No:FA-2A

Max. Printing Area(perimeter x width):240x200mm

Max.Printing Diameter:5-150mm(75mm for printing on full circle)

Max.Length of Products:250mm

Power:220V 50-60Mhz 200kw

Air Pressure:5-7bar

Transverse Stroke:250mm

Vertical Stroke:100mm

Max. Printing Speed:1200pcs/hr

Printing Worksatation:1pc

Packing Size(LxWxH):98x99x138cm

Weight:155/165kgs

Automatic Grade:Semi-automatic

Usage:Screen Printing Machine for Bottle , cap, barrel, drum,  metal, plastic products

  • Product Detail
  • Video

Bottle Cylinderical Screen Printing Machines

Machine Feature

Cylinderical Screen Printing Machines is kind of multi-functional screen printing machine, suitable to print on flat, round, oval shaped products lipstick, cosmetic bottles, scour bottles, drink bottles, oil-filter shell etc .Cylinderical screen printers can print one color at one time. Once replacing frame and ink, they can print 2, 3 colors.

Function

1. Auto 4 digital LED count brings high degree of automation;

2. Micro-computer control system program, ensures printing stablely and accurately

3. Printing stroke and printing speed could be adjusted

4. Work-table could be oriented by vertical, transverse, or level

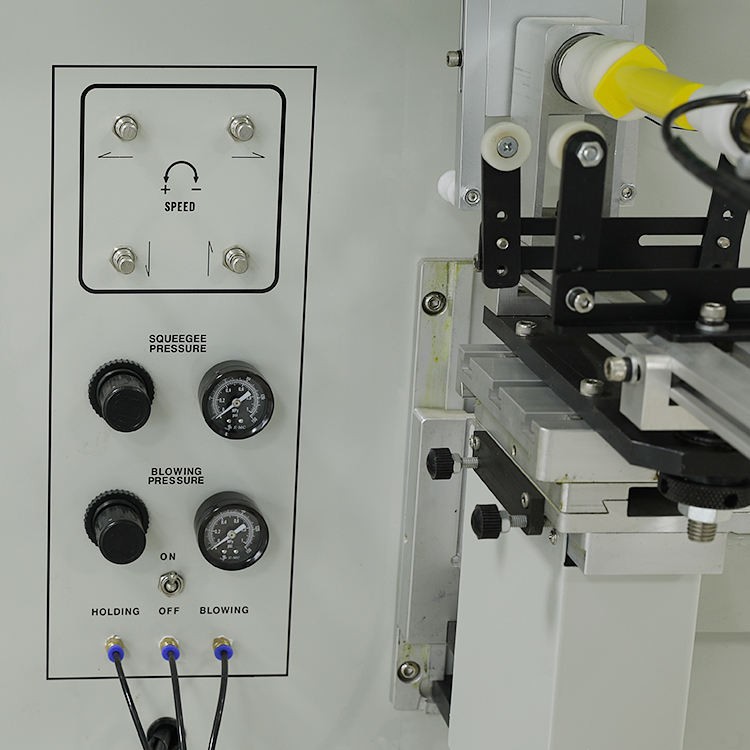

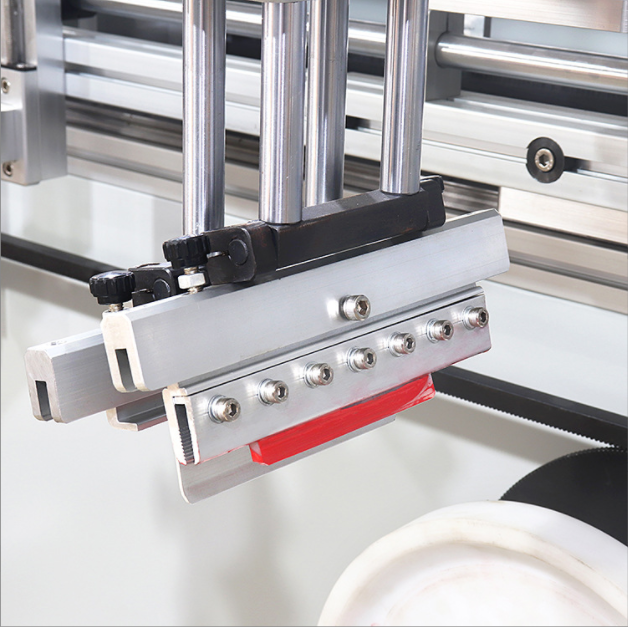

5. Pneumatic self-balance scraper technology and back blade ensures inking evenly pressure and avoid ink wastage.

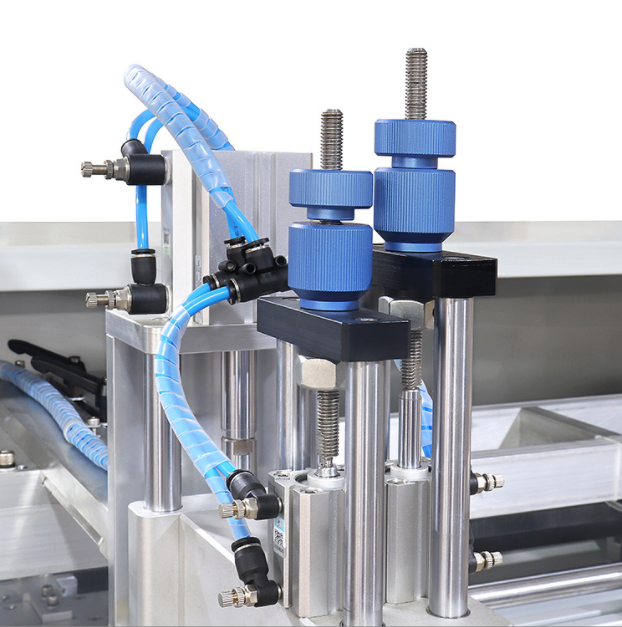

6. Precite axis control the screening up and down, accuracy up to 0.07mm

7. With the function of ink scraping nonstop without printing in order to prevent the ink from drying

8. With foundation timulation function , it could print on products with soft surface

9. Installation of the German FESTO tubes,German ORGIA rod less cylinders and Japanese SMC ,Korea sensor and perfect alarm system brings best printing effect

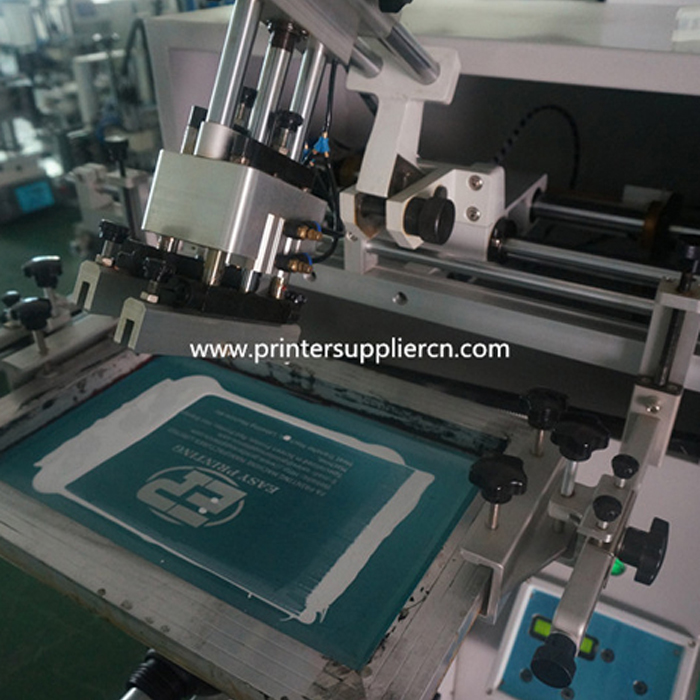

Bottle Cylinderical Screen Printing Machines

Bottle Cylinderical Screen Printing Machines

Bottle Cylinderical Screen Printing Machines
