UV Printer

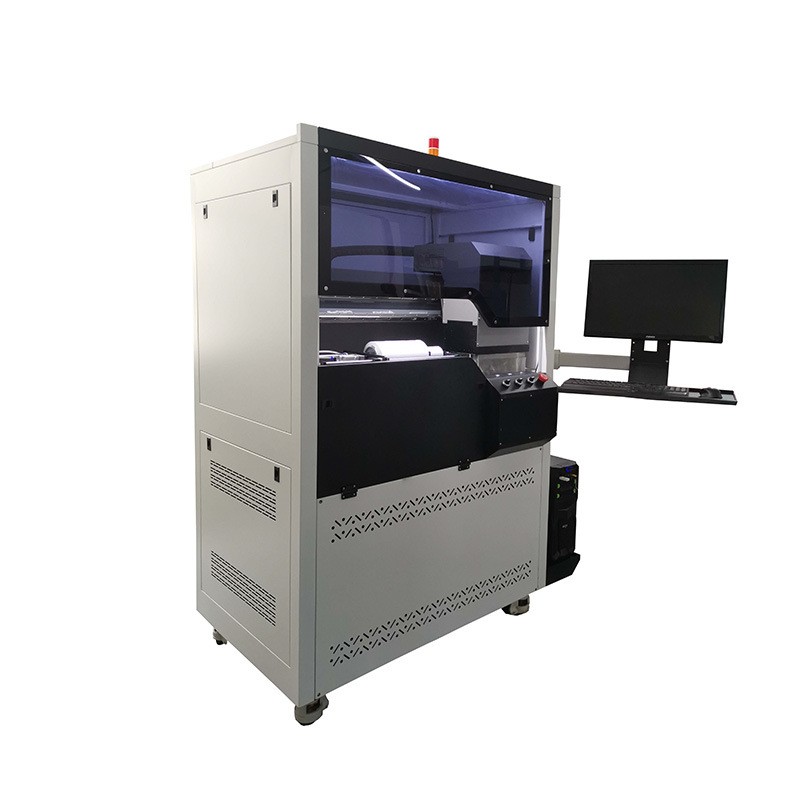

Round Bottle Inkjet UV Printing Machine

Technical Parameter:

Model NO.:YWD-360

Printing Size:40-300mm

Workpiece Height:30-120mm

Printing Length:40-300mm

Printing Taper:0-8°

Power requirement: 50HZ AC220/110S

Spray nozzle type: EPSON-XP600

Processing software: RIP software

Printing Mode: Rotary, white, colored+varnish

Graphic Format: Tiff, jpg, eps,pdf,png,ai, psd

Temperature/humidity: 20-30 ℃ C/30% -60%

Resolution Ratio720x720dpi

Printing speed: rotary, white, color+glossy

Printing colors: BK, C, M, Y, W, gloss

Printing speed:60S/piece (based on 3.14 inch (80 mm) image CMYK)

Ink type: UV ink, 4 colors+white+gloss

Machine Size:1300x850x1760mm

Weight:150kgs

  • Product Detail

Round Bottle Inkjet UV Printing Machine

Our printer can be seamlesslyconnected 360 degrees, and canprint products with different heightsand irregularities

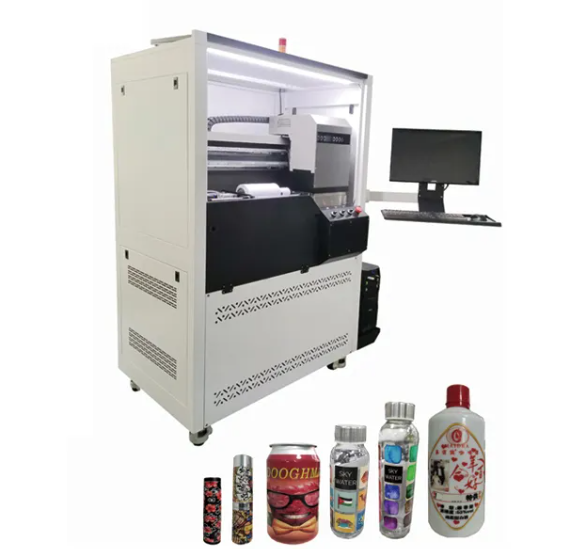

Wide range of applications

Industrial grade digital inkjet printing device designed for direct spraying of round bottles and cups, suitable for inkjet printing of patterns on the surface of cups, round bottles, tin cans, aluminum cans and other objects. Environmentally friendly UV-LED curing technology combined with pre-treatment solution.The printer can be applied to a variety of materials such as metal glass, paper, wood, plastic, etc.

Super high efficiency

The inkjet printer offers significant advantages over traditional pad printing, screen printing and offset printing technologies, including no plate making, simple makeready, short lead times and customizable printing, and significantly improves printing efficiency in short-run, custom, personalized and packaging proofing applications

High quality printing effect

Combining professional color management technology and unique VDS (Variable Drop Size) control technology, it excels at outputting smooth gradations, vivid colors, and clear, sharp fine text and lines to produce high-quality, diverse round bottle and cup prints according to design style.

Automatic 360 UV Bottle Rotary UV Printer

bottle inkjet uv printing machine

Round Bottle Inkjet UV Printing Machine
