Automatic Screen Printing Machine

Automatic Three Color Screen Printer for Cosmetic Jar

Automatic Three Color Screen Printer for Cosmetic Jar

Technical Parameter

Model  No. FA-TWS-316-UV

Printing Diameter:20mm-65mm

Printing Height:20mm-120mm

Air Pressure:5-7bar

Power Supply:AC220V 1 PAHSE/AC380V  3Phase 50Hz/60Hz  16kw

Machine Size(LxWxH):2000x2000x1900mm

Weight:2000kgs

Printing Color:Three colors

Number of UV System:Three

Printing Station:Three


  • Product Detail
  • Video

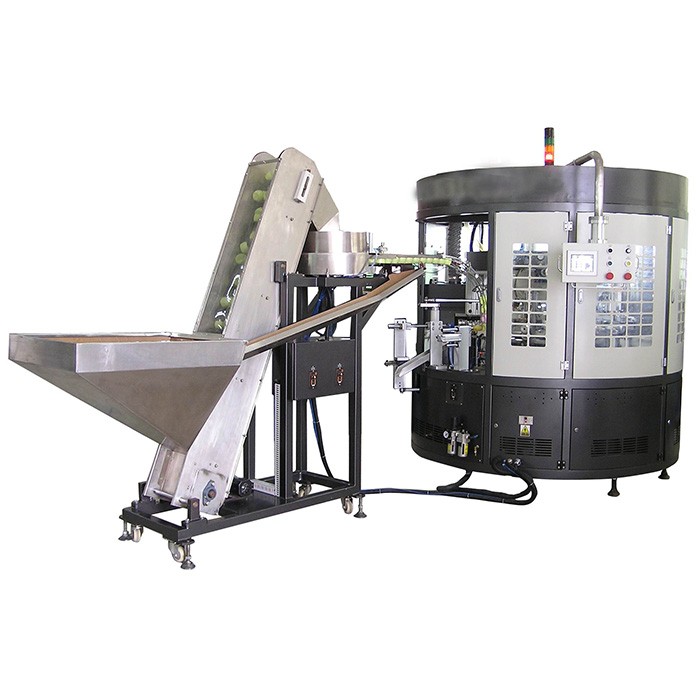

Automatic Three Color Screen Printer for Cosmetic Jar

Application

Bottle cap, bottle cover,tube, cosmetic jars, drinking straw, cream bottle, slicone pipe

Feature

3 color Auto Screen Printer is designed for flexible pipe is a full automatic plastic bottles printer with multi functions with 16 working stations. It is specially designed for the round shaped containers such as flexbile pipes,caps ,cosmestic bottles . This Auto Screen Printer could print mutiple colors without registration mark. Different working stations could matched with different configuration as per customs' special requirement.three station screen printing.and three UV coating system, we could also make the customized auto feeder and loading syatem with higher efficiency and labors-saving to meet the different requirements and save more resources.The divider designed with rotary style,mechanical transmission and computer controlling,easy to operate and ensure the high-quality printing effect.

Main Configuration

* Auto Feeder

*Surface Electrostatic System.

* Variable-speed Motor System

* Pre-allocation System

* No printing While No Bottle System

* UV Coating System

Automatic Three Color Screen Printer for Cosmetic Jar
