Mini Screen Printing Machine

Big Size Tabletop Screen Print Printer with T-slot Worktable

Technical Parameter

Model  No: FA-2030T2B

Max.Printing Size:200x600mm

Worktable Size:300x450mm

Max. Printing Height of Product:600mm

vertical stroke:600MM

Printing speed:800pcs/hour

power:220V,60HZ,1 phrase

Packing size:110X750X180CM

Printing Workstation:1pc

Machine Size(LxWxH):90x70x165cm

Net Weight:120KG

Gross Weigh:180KG

Warranty:One year

  • Product Detail
  • Video

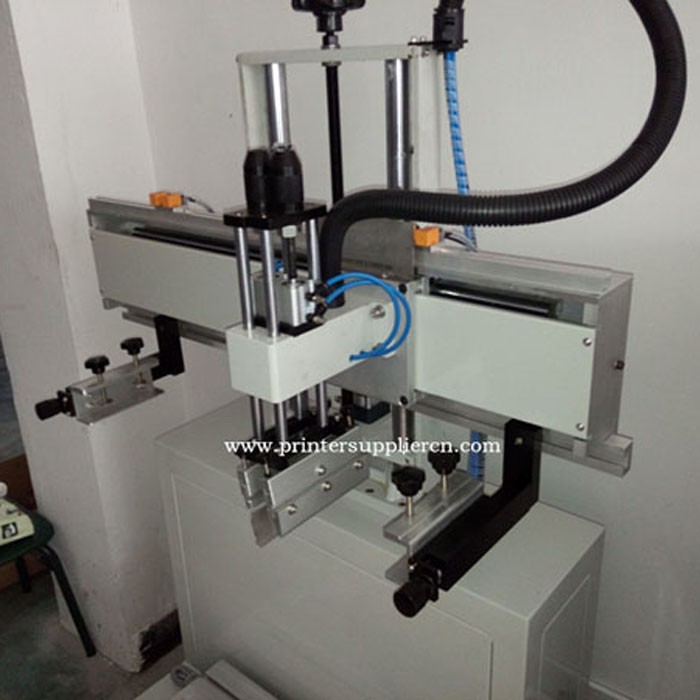

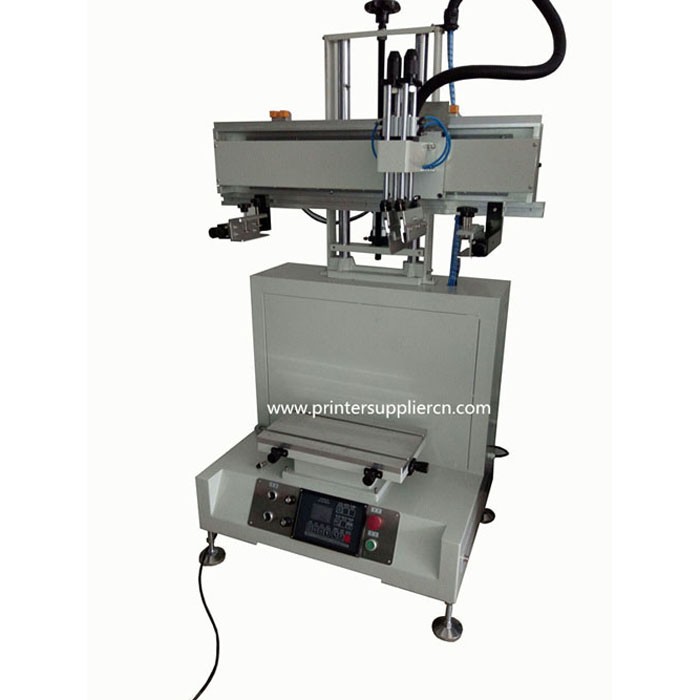

Big Size Tabletop Screen Print Printer with T-slot Worktable

This tabletop screen printing machine is designed to print products with height. For example, trash bin, storage box, panel etc.The machine is small with quick speed, stable function, high precice, it can be made up of screen printing production line in small workshop. It’s special suitable for printing logo on the surface of Rectangular barrel,Rectangular Container and big size plastic sheet

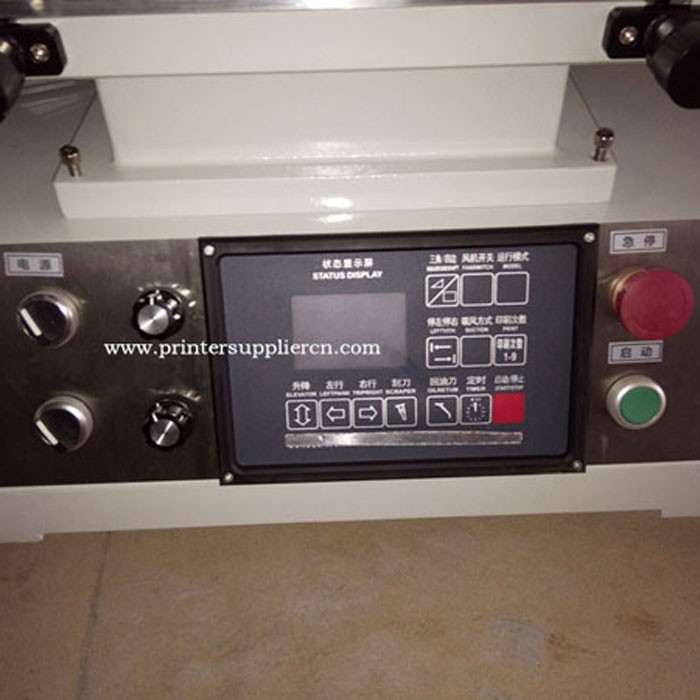

1. SCM IC coordinate light touching panel to complile action programming

2. Auto 4-digit counter built-in, counting printing quantity

3. Airframe adopts coin alloy,and metal coating surface

4. distyle vertical constructure, high precision, steady operation

5. the transeversa stroke can be adjusted, spacing by Taiwan electronic switch

6. the angle of scraper and ink covering blades can be adjusted randomly

7. installing scraper constant pressure equipment to make sure pressure is steady when printing

8. you can regulate work-table back and forth or right and left, and then fastening it

9. you can regulate screen frame back and forth, right and left or level orientatio

10. vacuum stainless steel worktable, it can absorb kinds of film products

11. installing CEC oil buffer on up and down, left and righ to avoid printing shock

12. The machine is running fastly, steably and lower noise.

13. Action model option: fully automatic | semi-automatic | manual

14. Start-up method:panel | foot switches

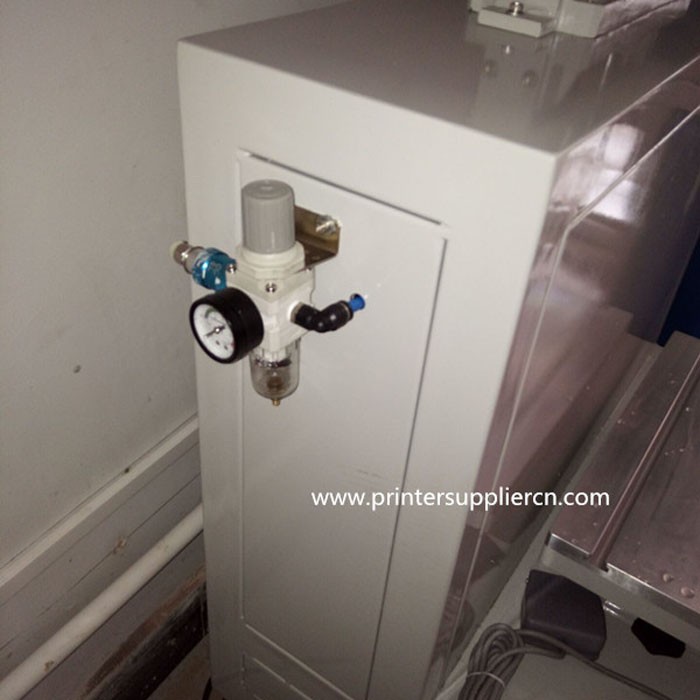

15. scraper pressure controller:by pressure regulating Valve

16. vertical driving style: pneumatic

17. transeversa driving style: pneumatic
