Mini Screen Printing Machine

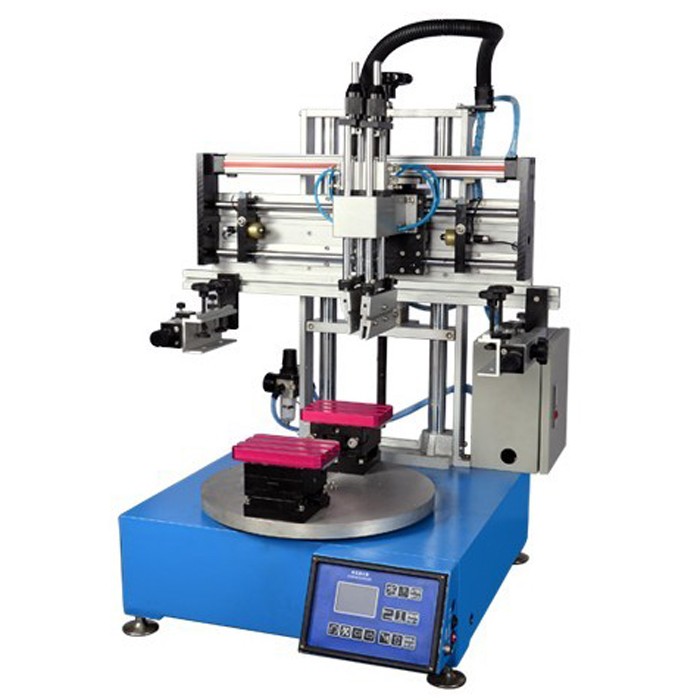

Tabletop Two Stations Rotary Screen Printing Machines Price

Tabletop 2 Stations Rotary Screen Printing Machines Price

Technical Parameter

Model  No:FA-2030X2

Max.Printing Size:200x300mm

Max. Printing Height of Product:100mm

Power:220/110v 50w

Air Pressure:5-7 bar

Transverse Stroke:350mm

Vertical Stroke:100mm

Transverse & Vertical Driving Style:Pneumatic

Printing Speed:1000pcs /hr

Printing Workstation:2pcs

Machine Size(LxWxH):80x80x100cm

Weight:150kgs

Automatic Grade:Semi-automatic

Color & Page:One color

Warranty:One year

  • Product Detail

Application

Mouse pad, mobile phone glass, MP3, SD card,electronic parts

Feature

This Tabletop 2 Stations Rotary Screen Printing Machines adopts Mechanical cam separator from Taiwan to make rotary table. The priniter is rotating with stability while proceeding with uploading and downloading the products during printing,with which the machine could work continuously. With its tabletop design and rotary worktables, it is widely used in advertising company, factory etc.

Function

1. SCM IC coordinates light-touch panel to compile programmable actions.

2. Auto 4-digit conter built-in to calculate printing quantity

3. Airframes adopts aluminum casting and with metal coating surface

4. Scraper and ink blades could be adjusted in any different angle

5. Worktable ,screen, left & right stroke, spacing distance are all adjustable

6. Pneumatic squeegee constant pressure device ensures the pressure stability during processing.

7. T-slot worktable brings convenience to load and unload jig

8. Up&down ,left & right are equiped with Taiwan CEC oil pressure buffer to eliminate working shock.
