Flame Treatment Machine

Cylinder and Flat Flame Treatment Machine

Technical Parameters

Model  No. FA-FT-Cylinder FA-FT-Flat
Flame size Φ150x200mm 25-200MM
Conveyor size 2000X340mm 2000 x230mm
Burning Gas LPG gas LPG gas
Conveyor speed 40( PCS/min) 40( PCS/min)
Power 220V  50--60MHZ 220V  50--60MHZ
Machine size 2200x1200x700mm 2200x1200x700mm
Gross/Net Weight 190kgs/155kgs 190kgs/155kgs
Automatic Grade semi-automatic semi-automatic
Warranty Two years Two years
Usage Mainly used for pre-treatment of polyethylene and polypropylene plastic products. Cylinder bottles made by PP PE material

  • Product Detail
  • Video

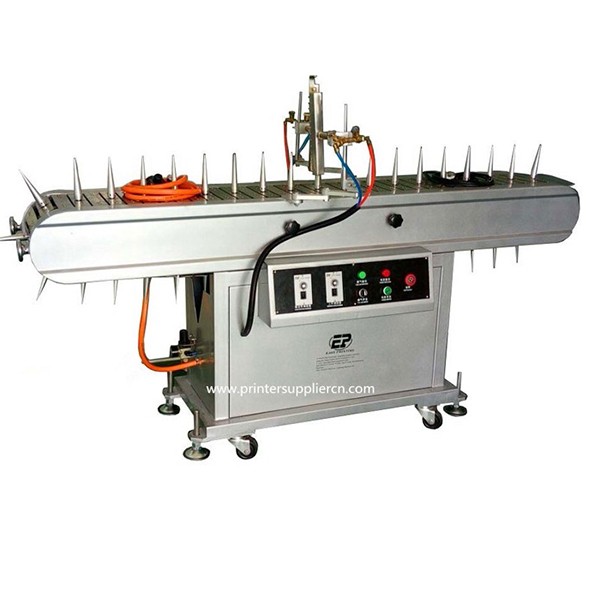

Cylinder and Flat Flame Treatment Machine

Cylinder and Flat Flame Treatment Machine is a versatile industrial equipment designed to modify the surface properties of various materials, primarily plastics and polymers, to enhance adhesion for printing, labeling, gluing, or coating processes. It does so by exposing the material's surface to an open flame, which alters its chemical composition and increases its surface energy.


Drying to UV ink printed onto paper, PVC etc soft and thin substrates. Connecting with offset printer to cure UV ink, so printing looks shiny and more beautiful.

This machine is suitable for Spot UV process with flat vacuum screen printer; Curing some soft materials after coating by roller; Entering mouth adjustable make diffrent objects curing;

Temperature controlled automatically ensure Objects drying on lower temperature.


1. Teflon conveyor belt, and high temperature.

2. Brand-name motor driver, the speed stepless adjustment, convenient to adjust the conveyor speed based on product characteristics.

3. UV lamp intensity focused, long service life.

4. Electronic components (transformers, starters), control, precision, long life

5. Ventilation function can quickly rule out the heat of the curing chamber, and reduced product deformation, increase lamp utility.

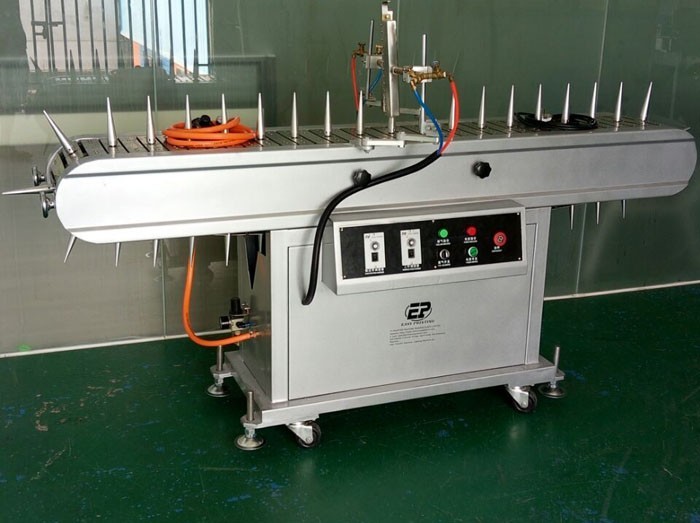

Cylinder and Flat Flame Treatment Machine

Cylinder and Flat Flame Treatment Machine

flame treating machine manufacturer
