Ink Tray Pad Printing Machine

Large Size One Color Pad Printer Machine

Large Size One Color Pad Printer Machine

Item  No.:FA-M1

Max.Printing Size:60x170mm

Steel Plate Size:100x200mm

Power:110/220V 50-60HZ 30w

Transverse Stroke:180mm

Vertical Stroke:75mm

Ink Cup Diameter:127mm

Air Consumption:5-7bar

Printing Speed:2200pcs/hr

Machine Size(LxWxH):95x63x150cm

Weight:170kg



  • Product Detail
  • Video

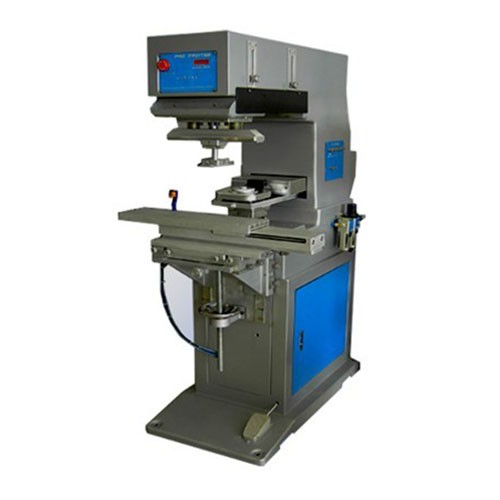

Large Size One Color Pad Printer Machine

Application

Bottle Caps, Balls (Golf & Tennis)

Electrical items – MCB, Bulbs, CFL, Switches

Stationery items – Pens, Paper Weight, Staplers, Punching Machine, Logo on Diaries

Gifts and Novelties – Key Chains, Lighters, Bottles

Feature

Large Size One Color Pad Printer Machine with Open Tray is suitable for printing large workpiece. The machine is easily installed in workshop. Many factories choose this machine for bulk pad printing production. It wins great competition in its COMPETATIVE price.could print variety of surface,such as flat,cylindrical,spherical,compound angles,textures,convave surfaces,convex surfaces etc. Widely applied in toys, sports, crafts, electonic, household etc.

Function

1. With microcomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable.

2. With aluminum alloy structure frame and metal coating surface, the machine is easy to move but steady

3. With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification

4. Adjustable inking pressure and printing speed meets different printing requirements

5. Open ink tray system, easily to get and replace the plate

6. 360° adjustable rubber pad angle and ±5° adjustable worktable angle ensure repeat precision to be less 0.05mm

7. Worktable,plastic head and ink tray can be adjusted X. Y. Z direction

8. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
