Ink Tray Pad Printing Machine

Economic Two Colors Open Tray Mini Tampo Printer

Technical Parameters

Item  No.:FA-MINI2/S

Max.Printing Size:70x70mm

Steel Plate Size:100x100mm

Power:110/220V 50-60HZ 30w

Transverse Stroke:110mm

Vertical Stroke:50mm

Ink Cup Diameter:125mm

Air Consumption :5-7bar

Printing Speed:1600pcs/hr

Machine Size(LxWxH) 56x45x115cm

Weight:55kgs

  • Product Detail
  • Video

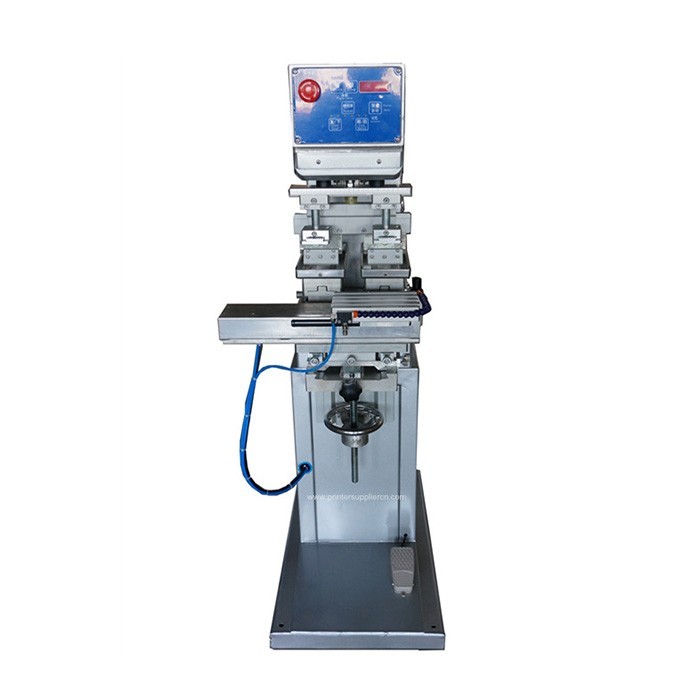

Economic Two Colors Open Tray Mini Tampo Printer

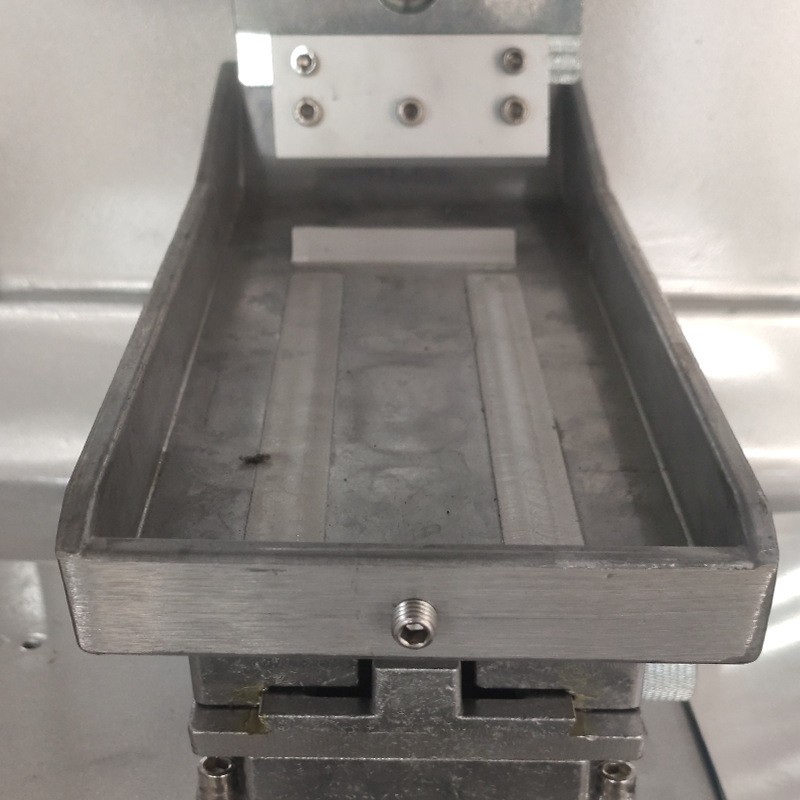

This is a model of mini Tampo Printer. It is equipped with open ink tray . It is a tampoprint pad printing machine that is designed to print images or designs in two different colors on a variety of surfaces.

It is used for printing on various substrates like Plastics, Metals,Glass and Ceramics, Paper and Cardboard, Leather. However,it is primary used in placeswhere the printing area is small and / or the contour or surface of the object is not flat or hard to reach by other printing process.

Some of the key features of this machine include:

1. Two-color printing: The machine is equipped with two different color printing pads or plates, which allows it to print the same design in two different colors simultaneously.

2. High precision: The two-color pad printing machine is highly precise and can produce very fine details, making it suitable for printing small, intricate designs.

3. Versatility: The machine can print on a wide range of surfaces, including plastic, metal, glass, paper, and textile materials.

4. Easy to use: The machine is also user-friendly and easy to set up, making it ideal for small to medium-sized businesses.

5. Efficient: The machine can print a large number of items quickly and efficiently, which makes it an ideal choice for businesses that require high-volume printing.

6. Durable: The two-color pad printing machine is built to last and is made from high-quality materials, ensuring that it can withstand frequent use without breaking down.

Economic Two Colors Mini Pad Printing Machine with Shuttle

Economic Two Colors Mini Pad Printing Machine with Shuttle

Mini Tampo Printer
