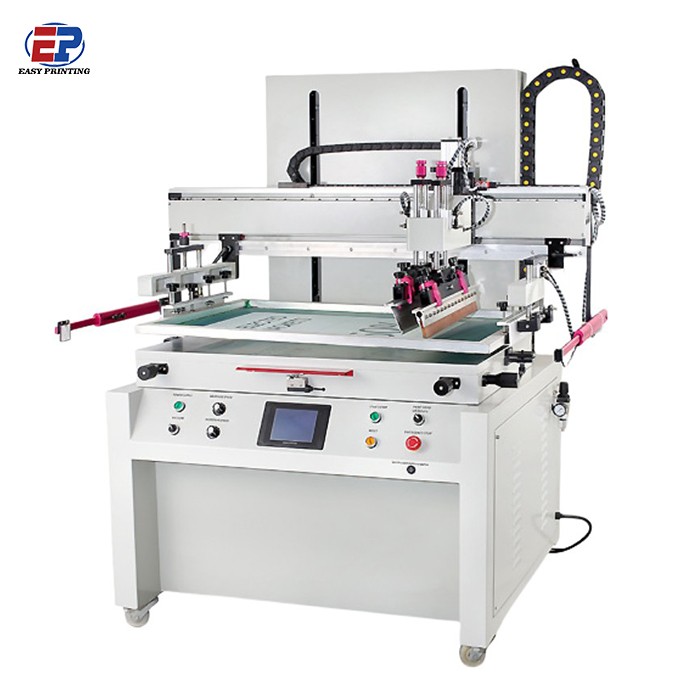

High Precise Vacuum Bed Flat PCB Screen Printing Machine

High Precise Vacuum Bed Flat PCB Screen Printing Machine

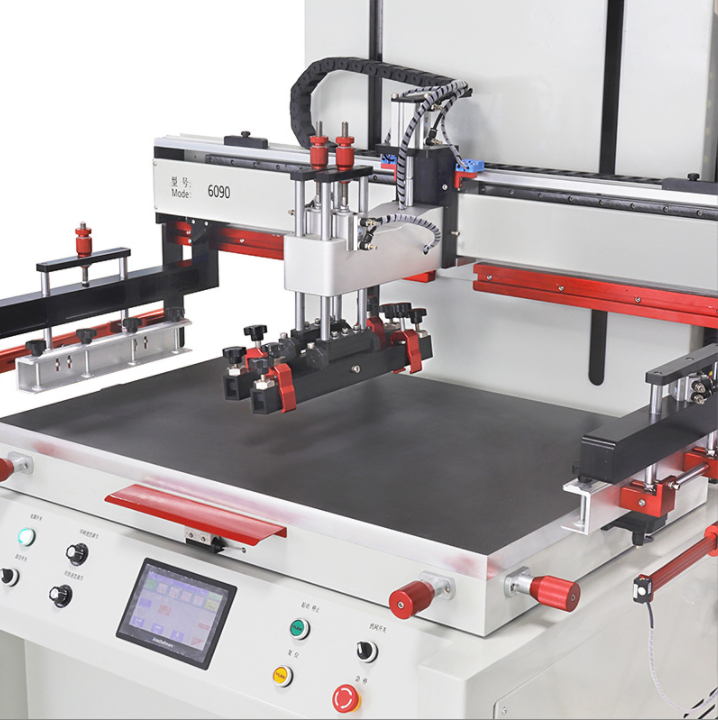

This screen printing machine is designd to print with flat surface. Machine is equipped with vacuum bed to printing the light-weight products. It can print on all flat materials such as paper, pvc,plastics, circuit board, ceramic, glass, non-woven fabric etc. The core feature of this screen printing machine is a vacuum bed that securely holds the PCB in place, ensuring there's no shifting or movement during the printing process. This guarantees high positional accuracy, critical for densely populated PCBs.

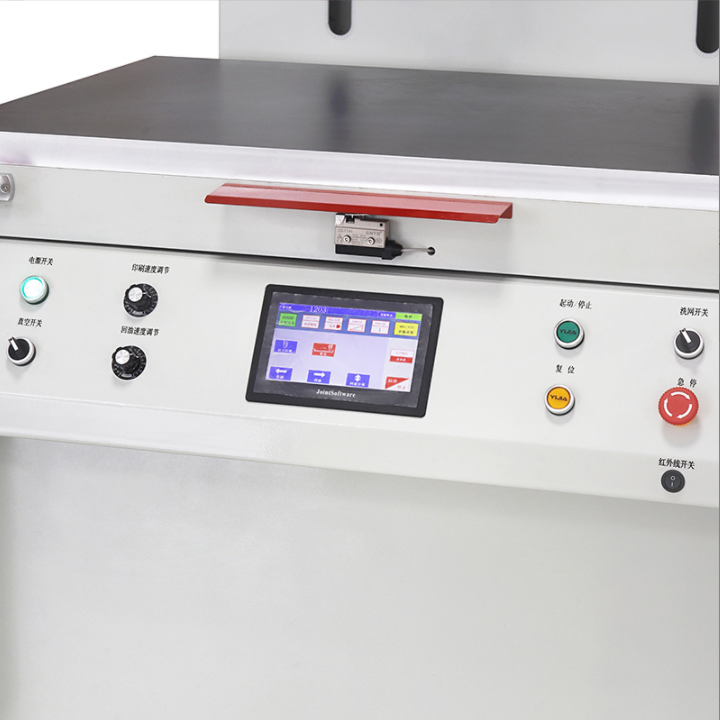

1. SCM IC coordinates light-touch panel to compile programmable actions.
2. Auto 4-digit conter built-in to calculate printing quantity
3. Airframes adopts aluminum casting and with metal coating surface

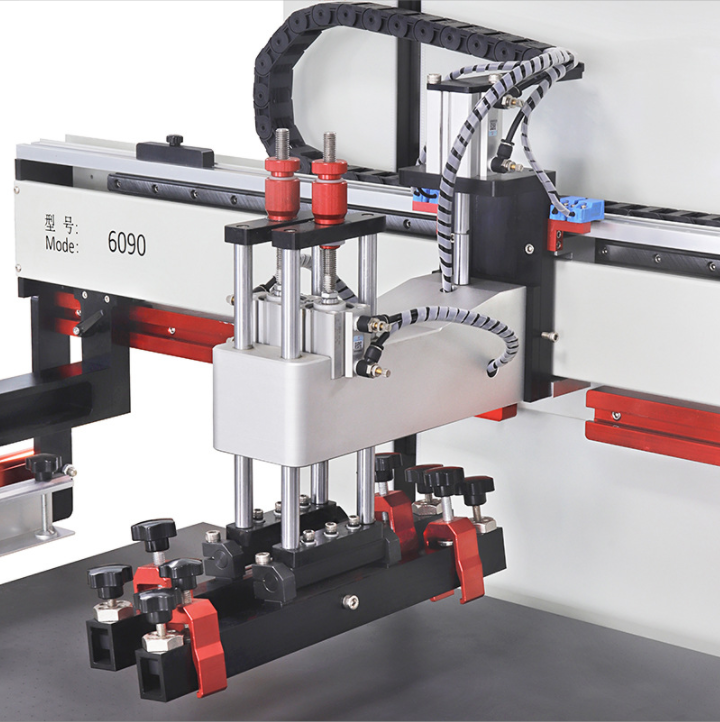

4. Double cylinders up& down structures ensures printing precisions and stability
5. Left & right stroke, squeegee and ink tool positions could be adjusted
6. Pneumatic squeegee constant pressure device ensures the pressure stability during processing.
7. T-slot worktable brings convenience to load and unload jig
8. Up&down are equiped with Taiwan CEC oil pressure buffer to eliminate working shock.
