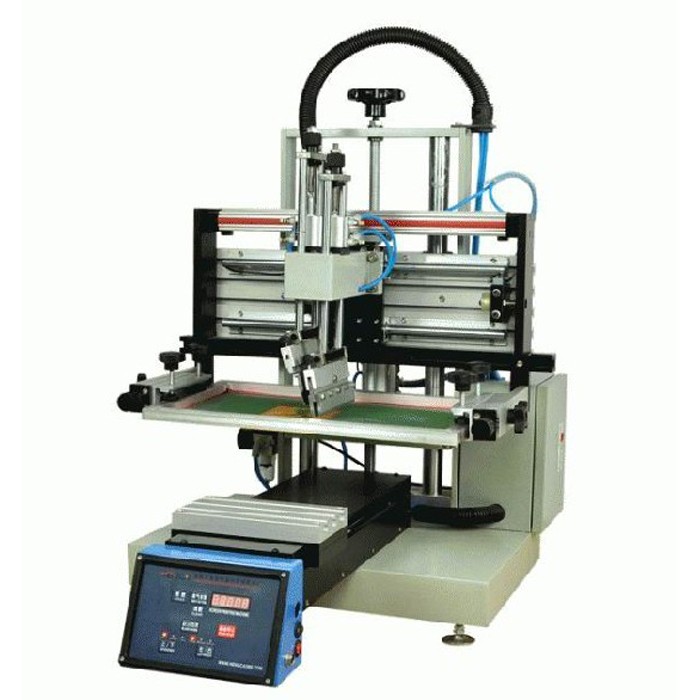

Mini Screen Printing Machine

Leather Silk Screen Printing Machines with Pneumatic-Drive

Technical Parameter

Model  No:FA-2030P

Max.Printing Size:200x300mm

Worktable Size:250x450mm

Max. Printing Height of Workpiece:80mm

Power:220/110v 50w

Air Pressure:5-6 bar

Transverse Stroke:400mm

Vertical Stroke:125mm

Pneumatic-drive Vertical Stroke:300mm

Printing Speed:1200pcs /hr

Printing Workstation:1pc

Machine Size(LxWxH):68x77x87cm

Weight:125/175kgs

Automatic Grade:Semi-automatic

Color & Page:One color

Warranty:One year

  • Product Detail
  • Video

Leather Silk Screen Printing Machines with Pneumatic-Drive

Application

Silicone keypad, mobile lens, mobile keyboard, press key, push button etc.

Feature

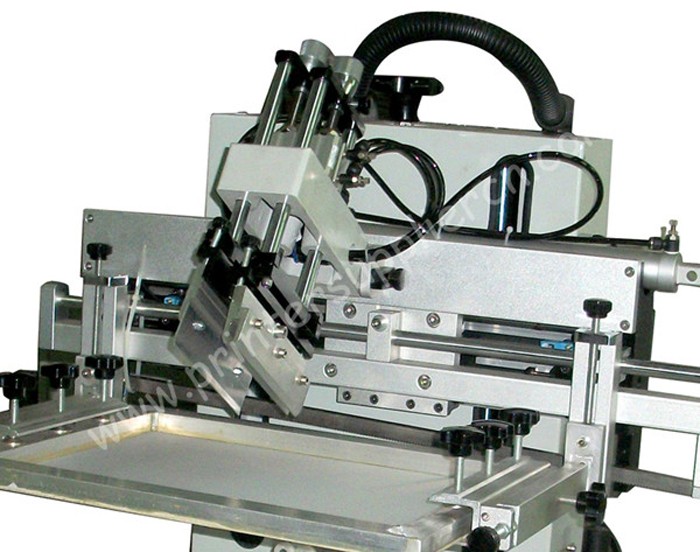

This mini screen printing machine is chariteristic with its Pneumatic-drive , which adopts Germany ORIGA rod less cylinders to reach sliding guideof left/right and front/back . Front and back pneumatic-drive constucture design. Fast speed, accurate location, easy operation. It is very suitable for printing products which is not easily to take and discharge, like silicone keypad, mobile lens, mobile keyboard, press key, push button etc.

Function

1. SCM IC coordinates light-touch panel to compile programmable actions.

2. Auto 4-digit conter built-in to calculate printing quantity

3. Airframes adopts aluminum casting and with metal coating surface

4. Double cylinders up& down structures ensures printing precisions and stability

5. Left & right stroke, squeegee and ink tool positions could be adjusted

6. Pneumatic squeegee constant pressure device ensures the pressure stability during processing.

7. Up&down are equiped with Taiwan CEC oil pressure buffer to eliminate working shock.

8. Screen frame location could be adjusted either vertical or horizontal

9. Stainless steel suction table makes easily absorp variety of membrane/film products

10. Worktable could be regulated back & forth, right & left, slightly angle rotating and fastening.

Leather Silk Screen Printing Machines with Pneumatic-Drive
