Mini Screen Printing Machine

Paper Cube Screen Printing Machine

Technical Parameter

Model  No: FA-2030Z

Max.Printing Size:200x300mm

Worktable Size:250x450mm

Max. Printing Height of Product:100mm

Power:220/110v 60Hz 50w

Air Pressure:5-7 bar

Transverse Stroke:350mm

Vertical Stroke:160mm

Transverse & Vertical Driving Style:Pneumatic

Printing Speed:1000pcs /hr

Printing Workstation:1pc

Machine Size(LxWxH):80x80x100cm


Paper Cube Size Within120x120mm, or within 80x200mm

  • Product Detail
  • Video

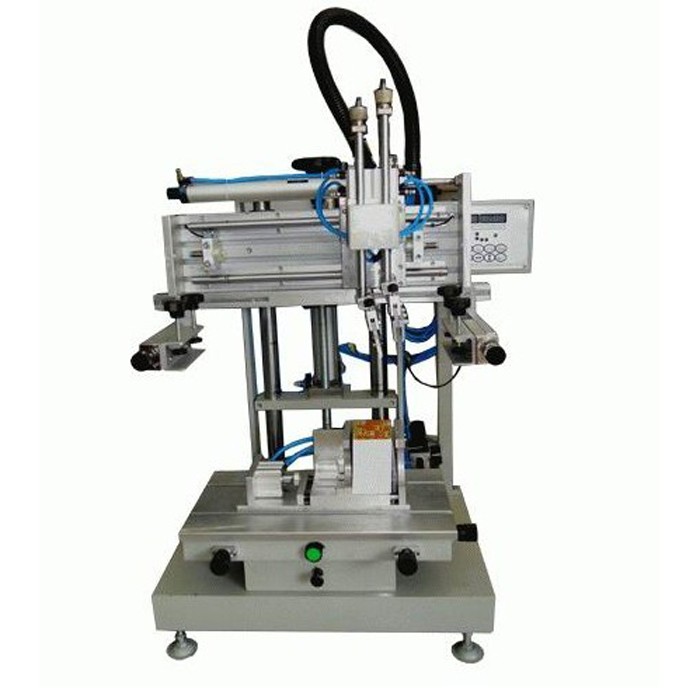

Paper Cube Screen Printing Machine


This machine is designed for printing paper cube, memo cube, paper brick


Paper Cube Screen Printing Machine is especially designed for printing memo cube, paper brick, paper cube. Paper cube size within 120x120mm, 80x200mm is suitable for printing.


1. SCM IC coordinates light-touch panel to compile programmable actions.

2. Auto 4-digit conter built-in to calculate printing quantity

3. Airframes adopts aluminum casting and with metal coating surface

4. Scraper and ink blades could be adjusted in any different angle

5. Worktable ,screen, left & right stroke, spacing distance are all adjustable

6. Pneumatic squeegee constant pressure device ensures the pressure stability during processing.

7. T-slot worktable brings convenience to load and unload jig

8. Up&down , left & right are equiped with Taiwan CEC oil pressure buffer to eliminate working shock.
