Pneumatic Hot Stamping Machine

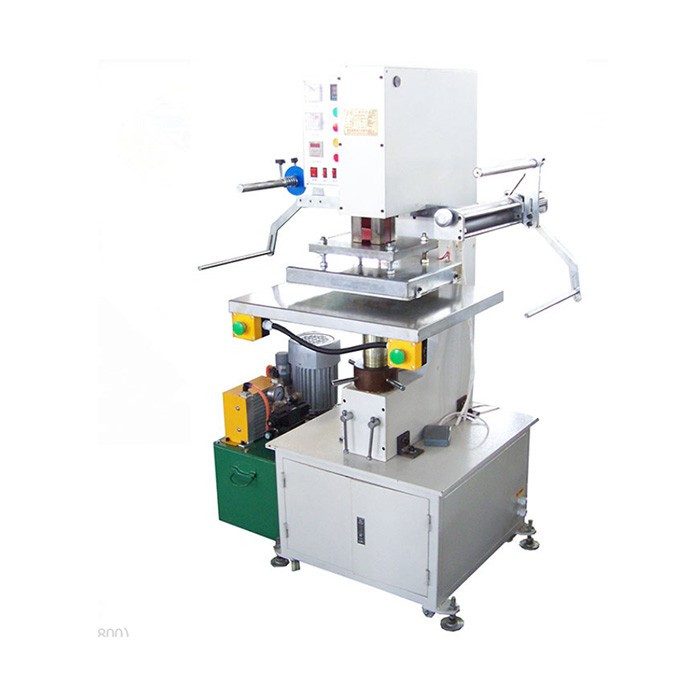

A3 Size Oil Pressure Hydraulic Hot Foil Stamping Machine

A3 Size Oil Pressure Hydraulic Hot Foil Stamping Machine

Technical Parameter

Item  No. FA-H3040

Power supply:220V/50HZ & 500W

Max hot stamping size:300x400mm

Table size: 500x420mm

Maximum pressure:20000KG (20T)

Vertical stroke:60mm

Hydraulic station capacity & output:25L & 12MPa

Roll of foil motor power and heating power:25W & 1600W

Speed:1200pcs/h

Machine Size:850x800x1570mm

Machine Weight :350KG

Temperature range:indoor temperature~399ºC

  • Product Detail

A3 Size Oil Pressure Hydraulic Hot Foil Stamping Machine

Product Description:

Hydraulic Hot Foil Stamping Machine is widely used in paper, cardboard, leather, plastic, PVC, wood and other materials flat stamping, embossing, baked pasted and so on.
The hydraulic hot foil stamping machine enjoys more higher pressure for assure perfect working stability and embossing pressure during operation.

Advantages:
1. Hydraulic power, connecting rod design, strong and stable pressure;
2. Elbow joint mechanism design, high efficiency;
3. Relay control operation, safe operation; Temperature controller controls heating, ensuring stable temperature;
4. Adjustable hot stamping pressure, temperature, and time;
5. The workbench can be adjusted in multiple directions such as front, back, and rotation;
6. Automatic paper feeding and receiving, and adjustable;
7. The height of the workbench can be flexibly adjusted for easy hot stamping of workpieces of different heights.
8. All equipment is of reliable quality, with a national warranty of six months and excellent after-sales service.
9. Based on the actual hot stamping needs of customers, we can design and customize improved equipment to meet the diverse needs of our customers.
