Automatic Screen Printing Machine

Automatic Disposable Cup Screen Printing Machine

Technical Parameter:

Model No.: FA-850

Max. Printing diameter: 120mm (360 degree printing)

Printing Speed: 3600pcs/hr

Machine weight: 800kg

Machine size:3100x1520x1890mm

Packing size:3230x1650x2090mm

Voltage power: 220V/50Hz

Packing weight:1090Kg

  • Product Detail

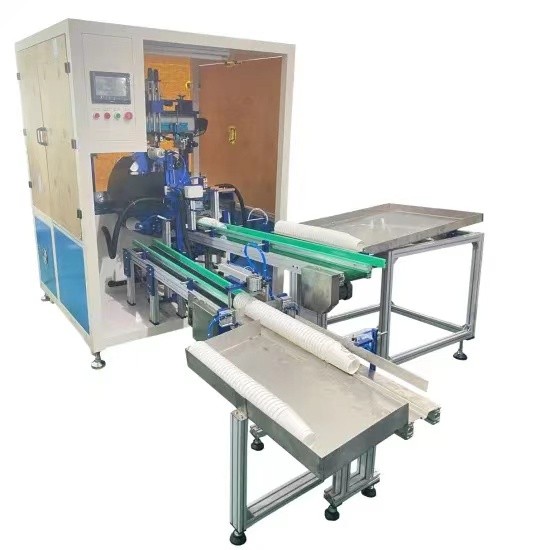

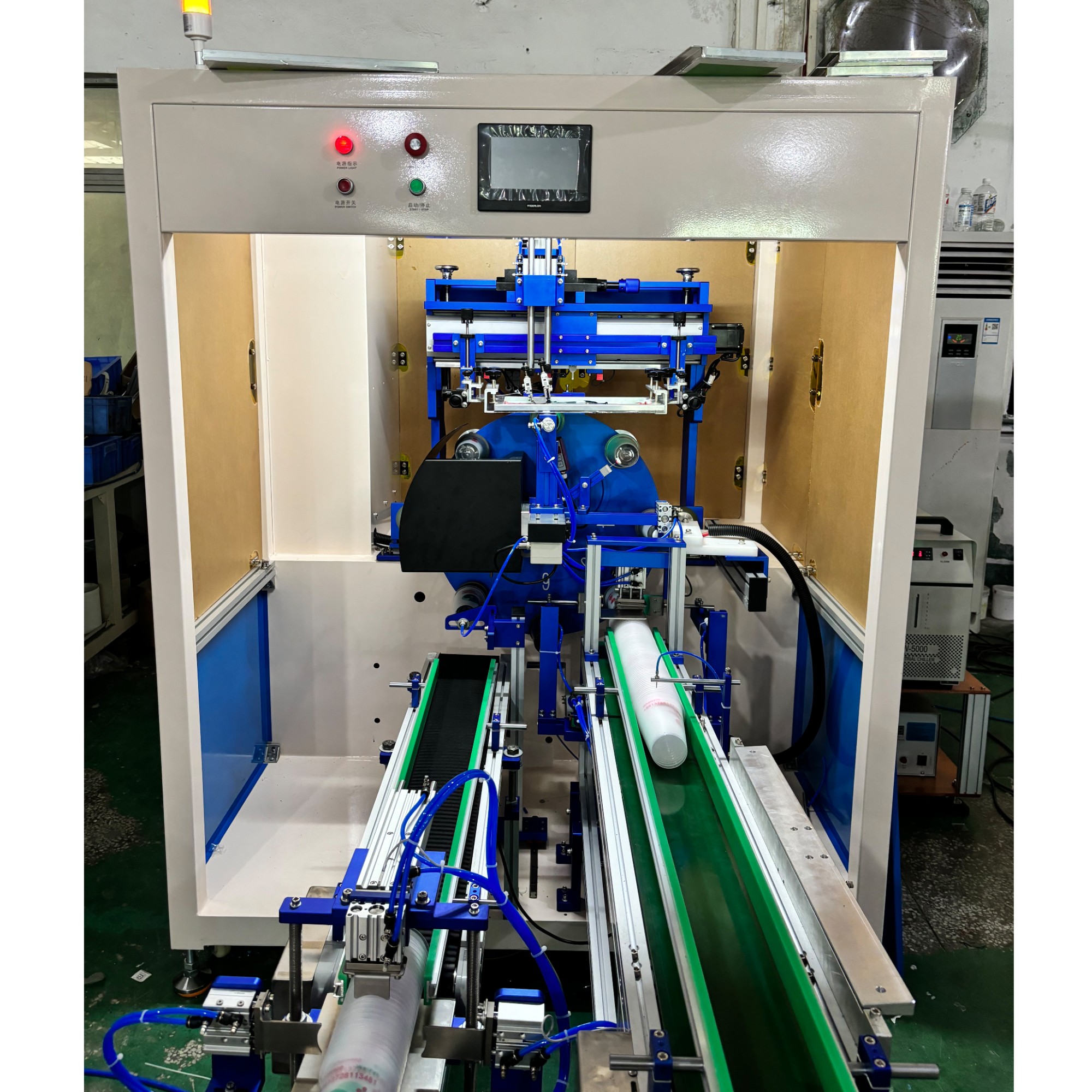

Automatic Disposable Cup Screen Printing Machine

This is a fully servo screen printing machine especially designed for printing the Disposable Cup, coffee cup. It print fastly with steady quality and lower voice. With its automatic color sensor register,it could do color-registration easily and high precisely.It is wildly applied in printing logos on disposable plastic cup ,PP cup ,PET cup ,PLA cup, paper cup ,ABS cup etc. It adopts fully servo system to control ,ensuring multiple color printing precisely.And it adopts advanced high sensitive sensor for making registration by automatically , automatic positioning ,It is very easy to print multiple color with high quality ,such ,2,3,.4,5,6 color ......

Feature:

With servo system

With PLC system

With Led UV dyer

With Automatic color sensor register

With corona system for surface treatment

With auto paper cup line sensor

With automatic counter and auto storage

With Automatic feeding and automatic unloading

With Ce certificate

Advantages:

1. Auto Vertical Rotational LED UV Screen Printing Machine,which is special designed for lamp starter, caps ,jars, tubes and cups etc..

2. It's designed compactly, LED UV curing system or heater(electable).

3. The configured systems:PLC and touch screen systems, auto feeding and unloading systems corona treatment,mechanical synchronous drive system,"No-piece-No-printing"sensor, mechanical fixing system for printing.

4.Machine will do auto storage , just put the cups on the storage , then the cups will go to the conveyor automatically , save labor and more convenient.

5.Machine could do auto counting, with setting the quantity number, it can adjust the number of cups after printing.

6.Machine with auto paper cup line automatic register (avoid printing logo on the paper line)

7. It's adopted the vertical rotating mechanical synchronous drive system,work-piece be rotated 360 degree to finish the printing; which becomes the high printing capacity line because the feeding system. The perfect design will satisfy many customers' different requirement for the high quality products.

disposable cup screen printer

automatic plastic cup screen printing machine

automatic paper cup screen printing machine
