Hot Stamping Machine

Embossing and Hot Stamping Machine for Leather

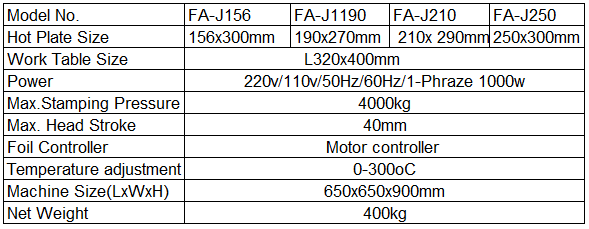

Technical Parameter

Item  No.  :  FA-J156

Max. Hot Stamping Size

(Hot Plate Size) :156x300mm

Work Table Size :L320x400mm      

Power :220v/110v/50Hz/60Hz/1-Phraze 1000w

Max.Stamping Pressure:4000kg

Vertical stroke: 40mm (height 80mm)

Foil Controller:Motor controller Motor controller

Temperature adjustment :0-300oC

Packing Size(LxWxH) :730x730x1350mm

Net Weight :400kg

  • Product Detail
  • Video

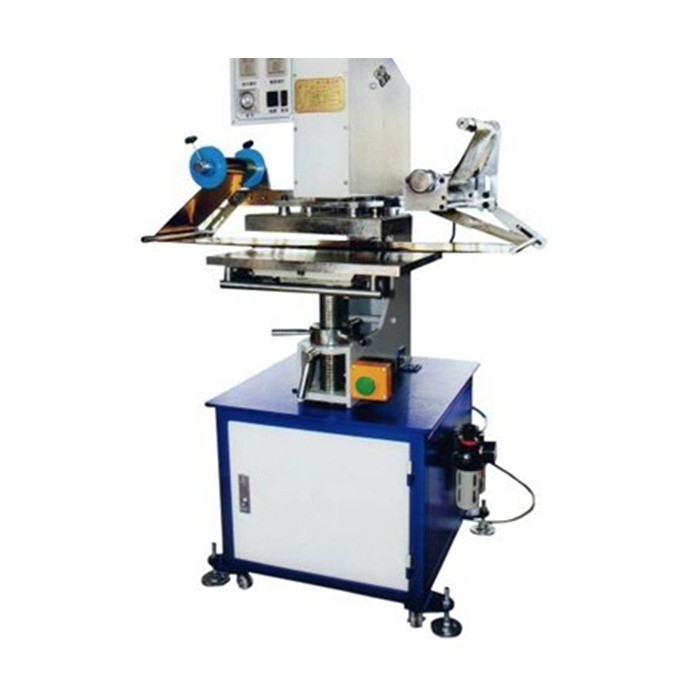

Embossing and Hot Stamping Machine for Leather

embossing machine for leather

Application

This embossing equipment is designed to stamping on different kind of flat surface products. eg, invitation card, zinc tin, wooden gift, Paper package, Plastics film, Electronic component, stationery. It is features with its high pressure stamping and large size printing. The embossed patterns are long-lasting and resistant to wear, preserving the beauty and value of the leather item over time.

Feature

Manual handling of the workpiece, the whole process automatic process, steel base, the bronzing process smooth; vertical pressure bronzing products such as paper, plastic, leather, PVC, wood, indentation, from the convex.

1.Electrical control run

2.Thermostat heating temperature stability

3.Vertical press stamping pressure, temperature, speed can be adjusted;

4.Workbench can be multi-faceted and angle adjustment

5.Automatic document feeder, the collection of paper, and adjustable.

6.Implemented in accordance with the requirements of the installation of photoelectric tube pitch control.

7.Table height can be flexibly adjusted

Embossing and Hot Stamping Machine for Leather
