Shoe Pad Printing Machine

Servo Two Colors Shoe Sole Pad Printing Machine

Technical Parameters

Model  No. FA-M3-XT

Max.Printing Area:150x800mm

Max.Steel Plate Size:160x960mm

Ink Cup Diameter:150mm

Power:220/110v 50-60Mhz 1kw

Transverse Stroke:700mm

Vertical Stroke:125mm

Printing Speed:600 pairs /hr

Machine Size(LxWxH):102x158x190cm

Color & Page:Two colors

  • Product Detail

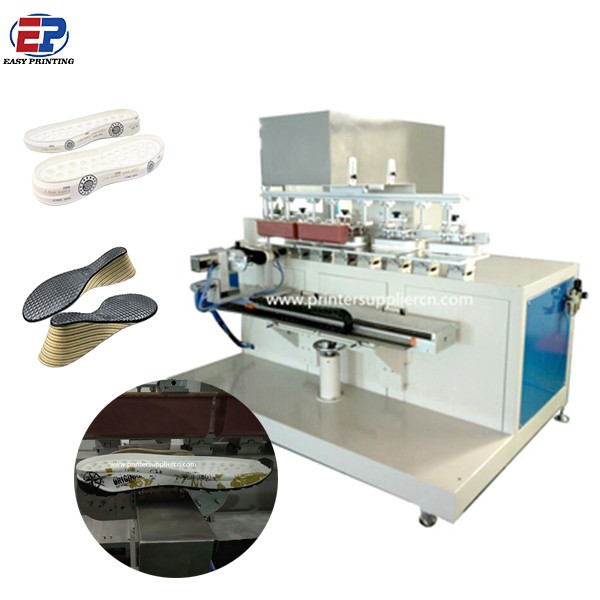

Servo Two Colors Shoe Sole Pad Printing Machine

Feature

This Shoes Sole Two Colors Two Sides Pad Printing Machine with chariteristed with servo system and four rubber pads that can do two color printing at two side on shoes heel. The pad printing machine could print variety of shoe designs. It is developed with its highly automatic operation, adjustable blading stroke and fast working speed. Meanwhile, the printing grains come out to be vivid and exquisite. It is one of the recommended Pad Printing Machine for Shoe production .

Function

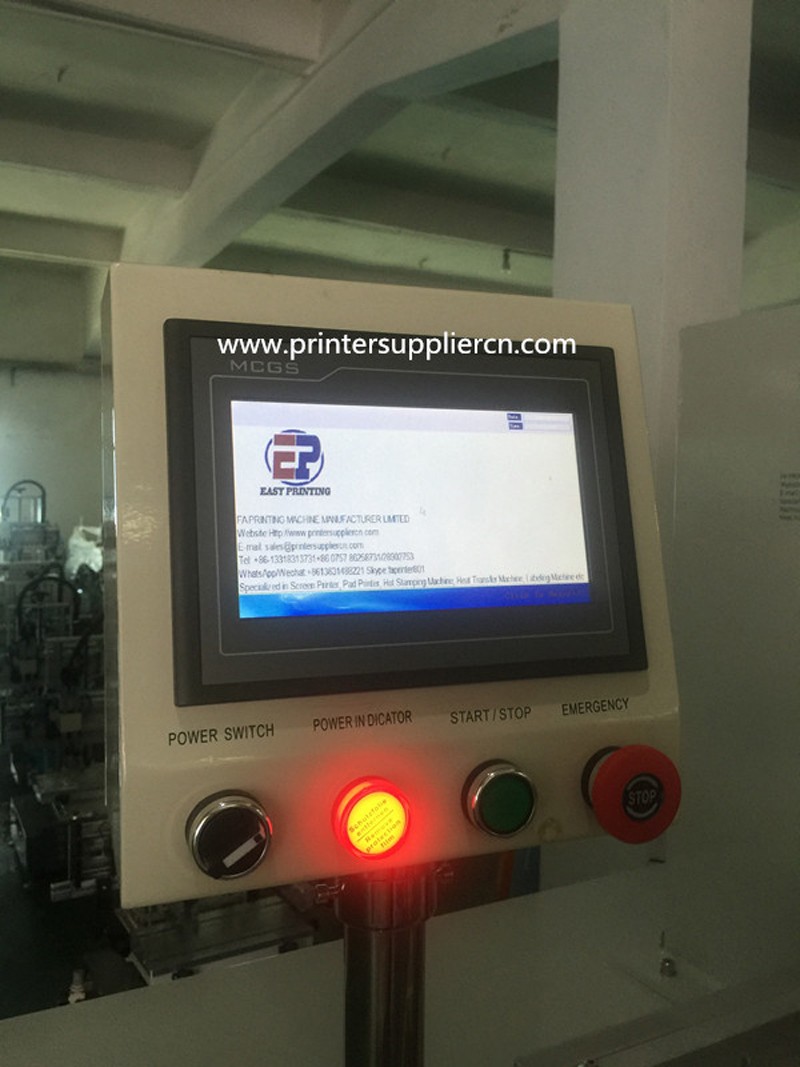

1. With microcomputer-controller, fully automatic operation makes the printing more mechanical

2. With aluminum alloy structure frame and metal coating surface, the machine is easy to move but steady

3. With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification

4. Adjustable inking pressure and printing speed meets different printing requirements

5. 360° adjustable rubber pad angle and ±5° adjustable worktable angle ensure repeat precision to be less 0.05mm

6. Worktable, plastic head and ink cup can be adjusted X, Y,Z direction

7. Close ink cup system makes more inviromental

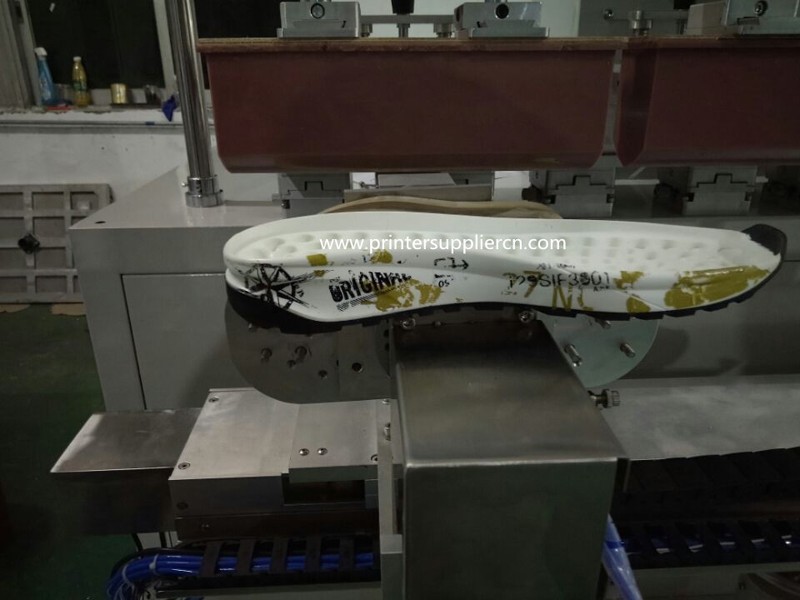

8. Could print both sides of heels at one time, improve printing efficiency.

shoe pad pad printing machine


Two Colors Shoe Sole Printing Machine with Servo Systerm

Two Colors Shoe Sole Printing Machine with Servo Systerm
