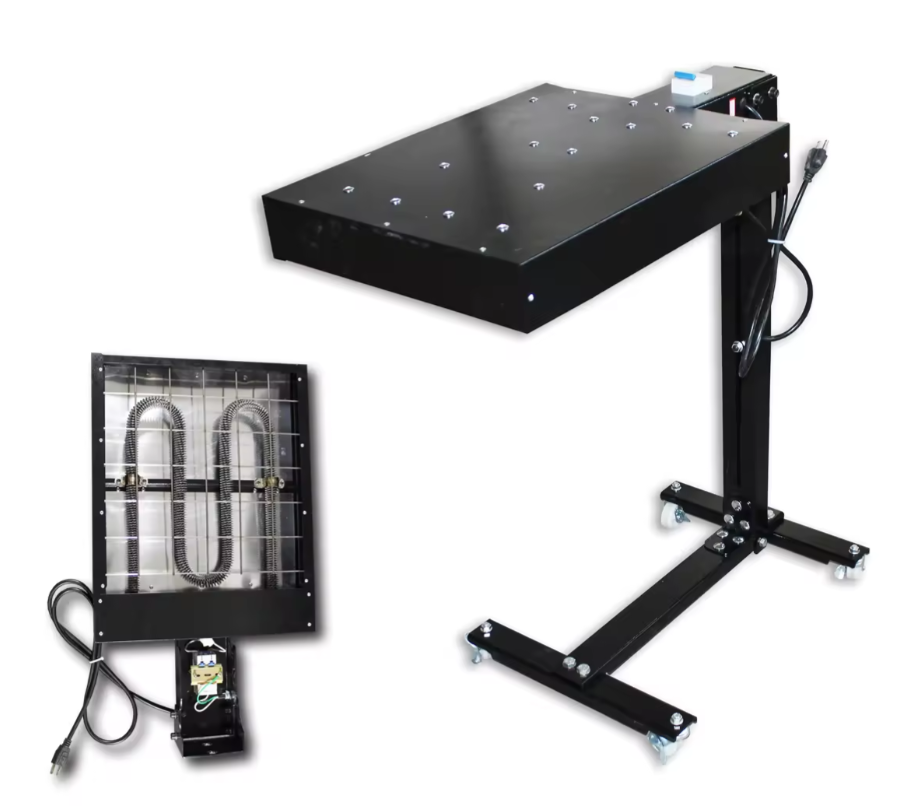

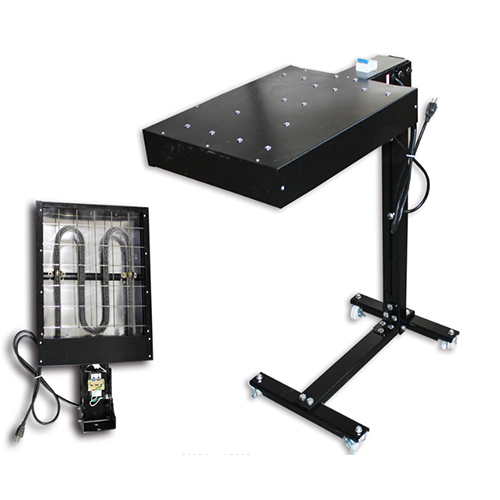

Screen Printing Flash Dryer 1600w


Technical Parameter:

Model No:FA-Dryer -1600w

Size of Drying Box:40*40cm

Heating tube material:Stainless Steel Heating Tubes

Power:220v/110v 1600w

Machine surface treatment:Electrostatic spraying

Net weight:20kg

Gross weight:22kg

Packing size:76*44*28cm



  • Product Detail
  • Video

Screen Printing Flash Dryer 1600w

Functions & features :

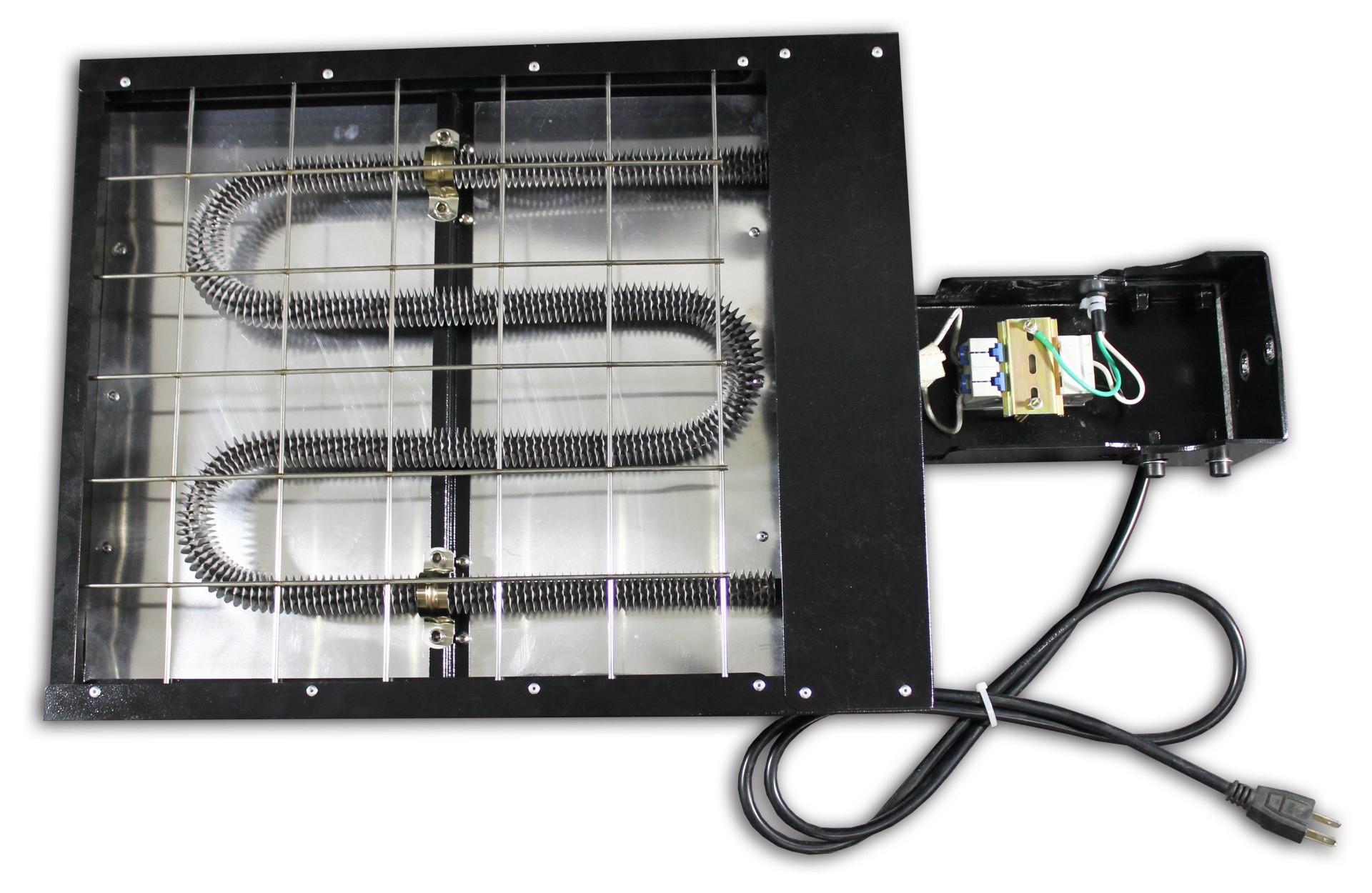

1.The heating tubes adopts 1600w stainless steel heating tubes ,high heating efficiency,it can normally be used for about 10000 hours.
2.The size of drying box is 40*40cm.

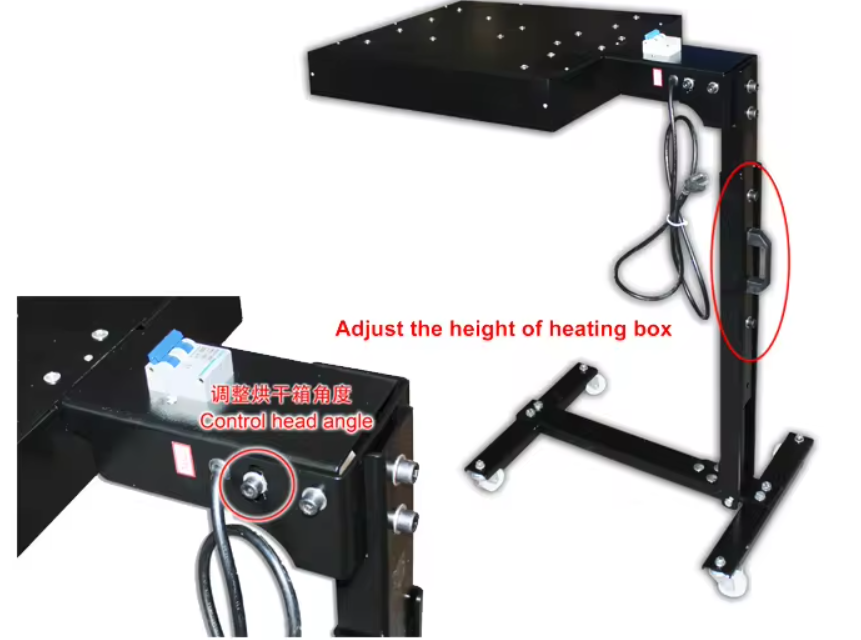

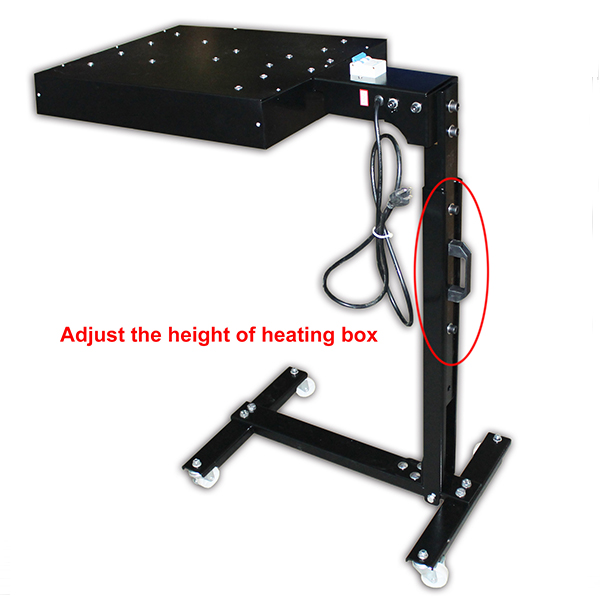

3.The temperature can be achieved by adjusting the height of the drying box.
4.The drying box can move 37cm from top to bottom.
5.The bottom of the dryer is 68cm distant from the ground, the highest can be adjust to 100cm.

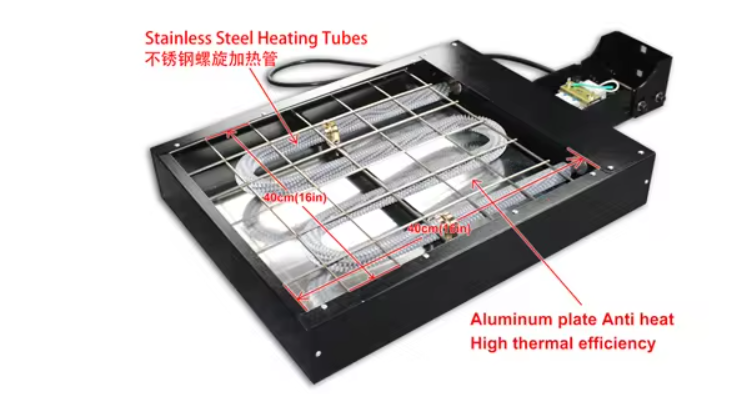

6.The back of the heating pipe is hot aluminum plate, its thermal efficiency is higher.
7.The bottom is equipped with casters , it can move arbitrary.
8.Prepare for the full set installation tools, test thermometer and installation instructions.

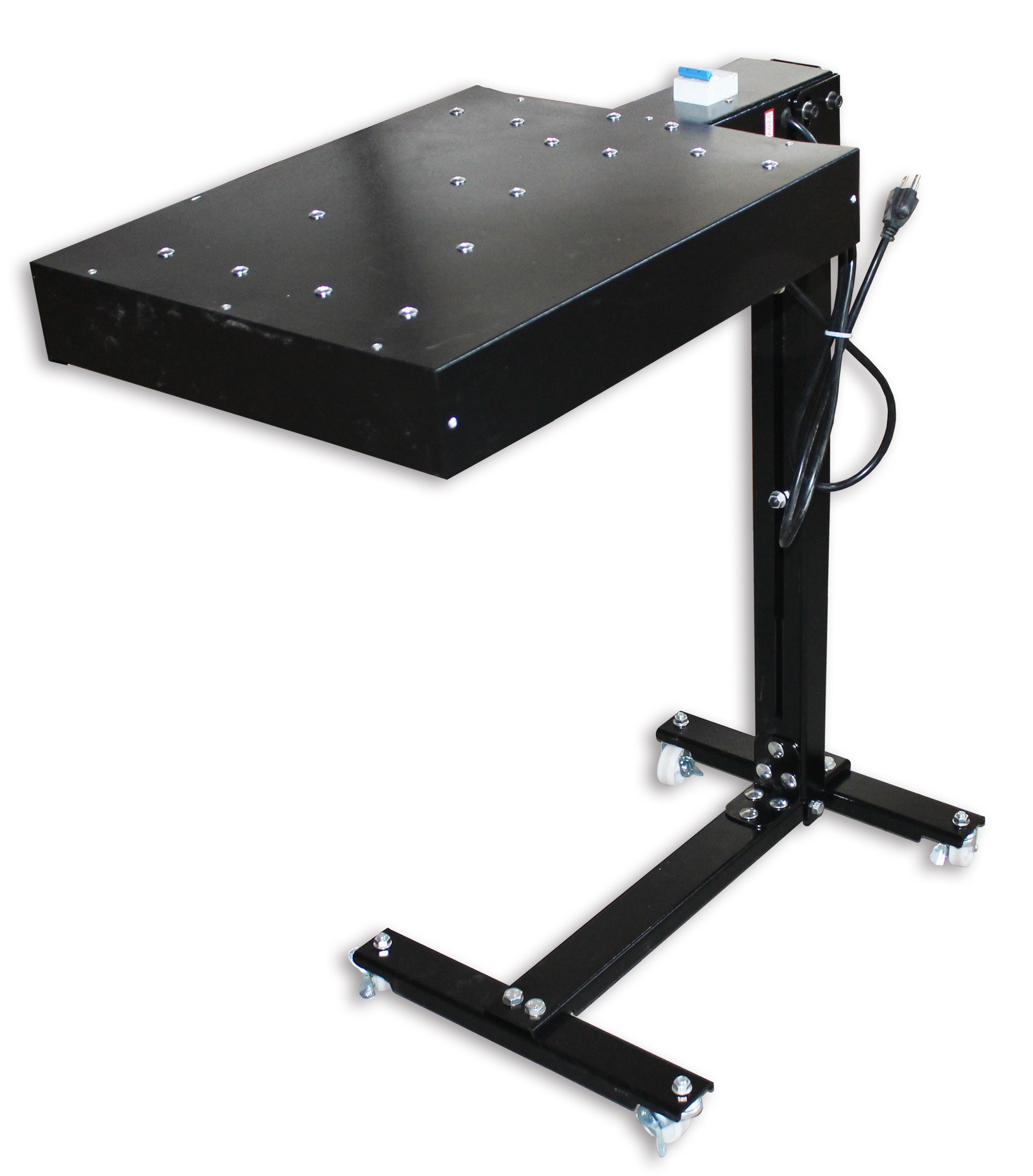

The floor movable flash dryer machine is mainly supporting multi-color rotary screen printing machine in the processof printing on products .lt is conducted by flash drying, wildly used in drying tshirt printing industry. It improves the efficiency of the printing



The functions and features of this flash dryer:The heating tubes adopts six stainless steel heating tubes (500W of each),High heatingefficiency,it can normally be used for about 10000 hoursSix heating tubes are divided into three groups of separate control,use a single group.combined use

The size of drying box is 40*40cm.Stainless

The temperature can be achieved by adjusting the height of the drying box.The drying box can move 37cm from top to bottom.The bottom of the dryer is 68cm distant from the ground, the highest can be adjust to 100cmThe back of the heating pipe is hot aluminum plate, its thermal efficiency is higher.



The bottom is equipped with casters , it can move arbitrary.Prepare for the full set installation tools, test thermometer and installation instructions.

How to use:

Move the dryer heating box to the top of the drying platform, turn on the power, start theheating.

Place the thermometer probe in the middle of the platform to start temperature measurement.Observe the temperature showed in the thermometer after 15 minutes ;lf the temperatureis too high; Adjust the height of the drying box ,if the temperature is too low ,shorten theheight of the dryinig box with the platform to achieve the proper temperatureTest reference data:( following data is just for reference )Use condition:

Room temperature 24 C(75 F); Work environment without circulation wind;

Bottom of the drying box is 3 cm distant from platform , the temperature is 180c (374 F)

Bottom of the drying box is 5 cm distant from platform , the temperature is 170 c (356F)

Bottom of the drying box is 7 cm distant from platform , the temperature is 160 c (320F)
