Ink Tray Pad Printing Machine

Single Color Roller Pad Printing Machine for Cylinder Tube

Technical Parameters

Model No.:FA-PP1/CL

Max. Printing Size:70x150mm

Steel Plate Size:100x200mm

Power:220V/50Hz 60kw

Air Pressure:5-7bar

Transversa Stroke:125mm

Vertical Stroke:50mm

Printing Speed:2000pcs/hr

Machine Size(LxWxH):800*780*1550mm

Machine Weight:150kgs

  • Product Detail
  • Video

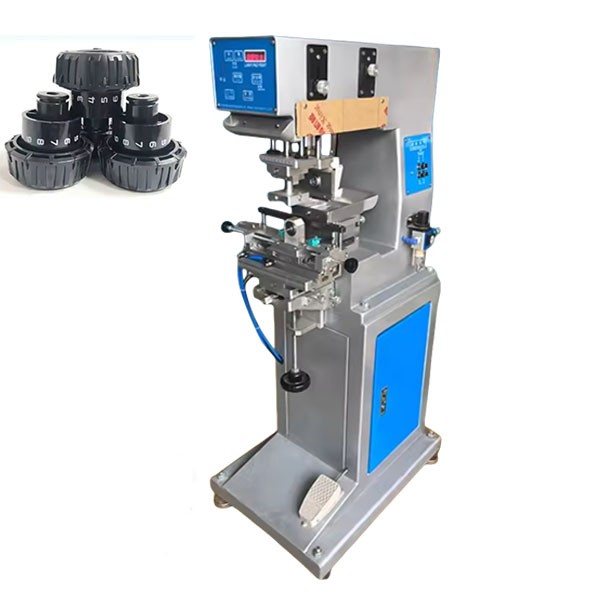

Single Color Roller Pad Printing Machine for Cylinder Tube

The advantage of this pad printing machine is that it can be printed on a special curved surface. Machine is equipped with special rolling printing fixture. It could complete the tampo printing on edge/rim of the tube products. Especially applied to scale marking on cylinder tube shape products and folding cup/stacking cup etc.

Feature:

1.Japan Mitsubishi PLC with man-machine touch screen, programmable printing process

2.Japan SMC cylinder driven and solenoid valve, stable running and longer service life.

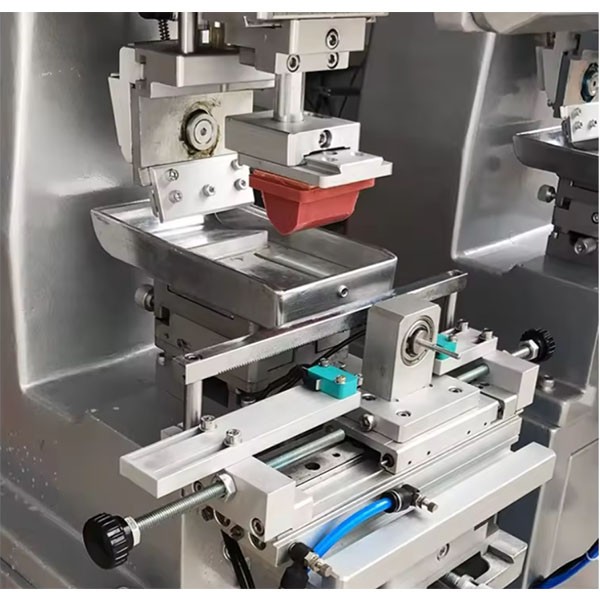

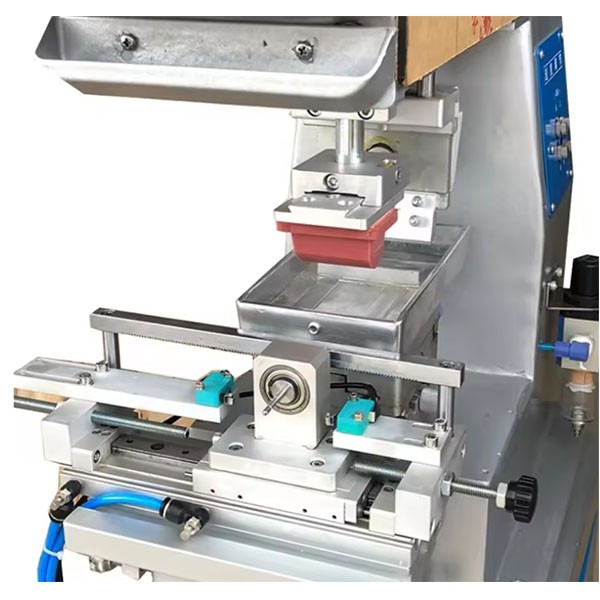

3.With special round pad and rotary fixture which can be rotary and print the whole circle products

4.Solid aluminum alloy casting machine, small vibration, stable printing

5.Installed safety device (Foot switch and Emergency switch make sure operator's safety)

6. Equipped with fully auto cleaning pad device

7. Equipped with Taiwan motor driven cleaning tape

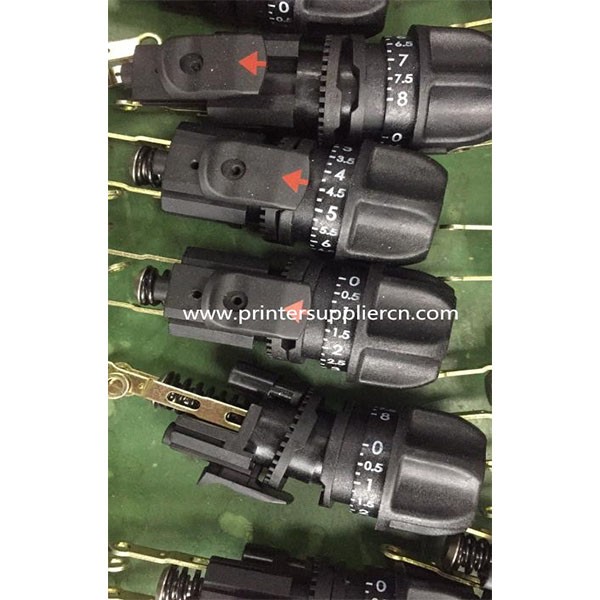

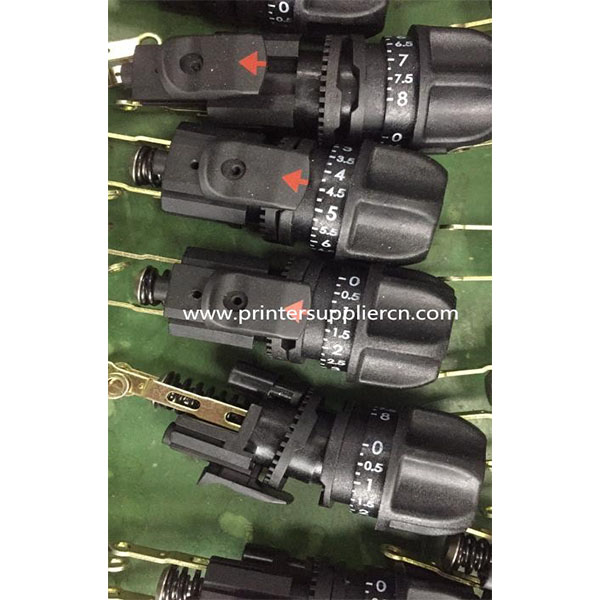

scale marking pad printing for tube
