Pad Printing Supplies

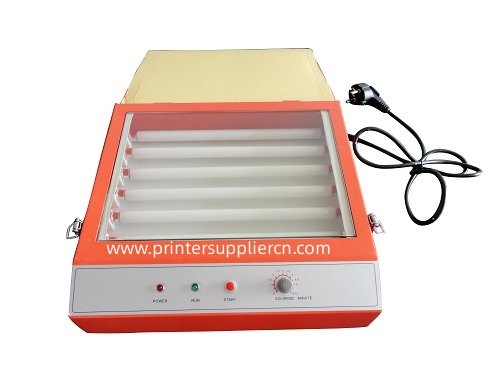

UV Exposure Unit For Pad Plate

UV Exposure Unit For Pad Plate
Technical Parameters
Model  No: FA-T-280SB
Exposure area: 180×280mm
Machine Dimension: 360×370×100mm
Lamp wattage: 8w×6
Lamp power: 60w/cm.
Glass Size: 200×280mm
Exposure time: 0-5.5Min
Package size: 370×360×100MM
Gross Weight: 10Kg
Power: 220V or 110V 50/60HZ
Automatic Grade:Semi-automatic
Warranty: One year
Usage: polymer plate, thin plate, steel plate and hot stamping plate
  • Product Detail
Application
UV Exposure Unit For Pad Plate is used in the filed of plate-making such as pad plate and hot stamping plate. when you put the film onto the plate into UV exposure machine, start it, the emulsion on the plate will appear a unseen imagine. this is important process on all plate-making technology.It is not suitable for exposuring on screen plate because there is no vacuum device and rubber clothes; The built-in digital timer provides excellent exposure timing control.
Feature
1. Adopting high quality lamps,which save electricity with long life
2. Timer with digtal readout
3. Set and operate very easily.
4. Antomatic photographic shutter operation.
5.exposure time is accurate
6.Imported special blanket vacuum pump
7.The dimension could be done as the customs requirements.
8.Excellent outlook with strong and llght machine body. Users'eyes and skin are protected by the closed metal case in preventing leakage of UV llght.
9.Once pumped to vacuum, the whole process of exposing can be finished automatically. Easy to use and able to increase productivity at the same time
