UV Curing Machine

Mini UV Curing Machine

Mini UV Curing Machine

Technical Parameters

Model:FA-250W

Power of strip lamp:250W

Range of irradiation:35mm

Strip lamp High--Cvoltage :mercury lamp

Distance of irradiation:80-200mm

Cooling-down method Air cooled, air discharge

Power density:80-120w/cm

Light brightness range:1000-9500mMJ/CM2

Main maximum spectrum:365nm

Overall length of strip lamp:100mm

Dimensions of the shipping package:400Lx310Wx250H

Control box:180Lx110Wx325H

Weight:12kg

  • Product Detail

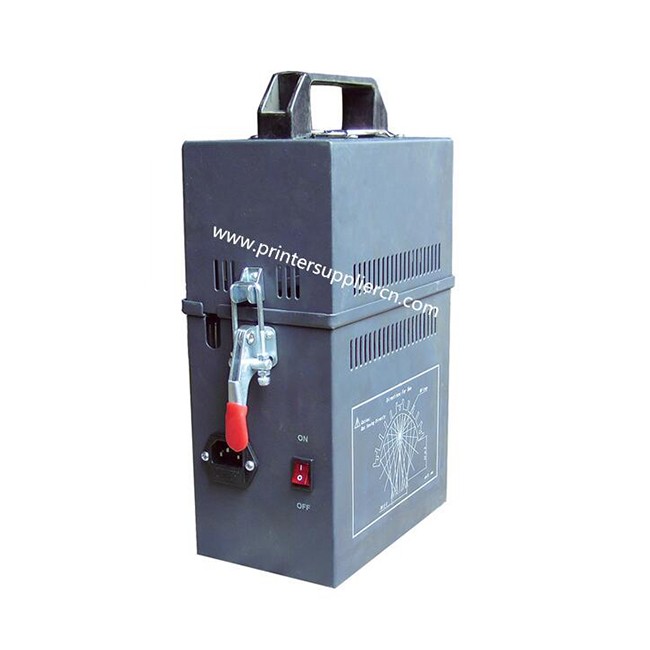

Mini UV Curing Machine

Scope of application:
It can be used for solidification of flooring painting, model fabrication, molding of handicrafts and scientific experiments.
Surface glazing of marble and granite, solidification of uv painting after the repair
It is applicable for uv glazing of furniture, flooring and other surfaces and field construction work etc.
Solidification of heterotypic uv, molding of molded handicrafts, solidification of medical apparatus and instruments, etc
Applicable for uv adhesive, lab and simply temporary construction and maintenance.
Main features:
The machine is elegant in appearance, compact in size and space-saving. It boasts of wide scope of application, reliable quality, safe service and simple operation.
This machine is simple for operation, it can work on movable basis, with strong freedom and flexibility, and its weakness lies in rather low efficiency.
The imported light source reflector can refract uv light to the utmost to strengthen drying and solidification effect.
Advanced radiating system prevents the work piece from being affected by temperature and extends service life of the strip lamp.

Quartz light filter can be selected as an optional part.

Mini UV Curing Machine
