Mini Screen Printing Machine

Update Tabletop Screen Print Printer with T-slot Worktable

Technical Parameter

Model  No. FA-2030T2

Max.Printing Size:200x300mm

Worktable Size:250x450mm

Max. Printing Height of Product:100mm

vertical stroke:160MM

worktable size:250x450mm

Printing speed:1200pcs/hour

power:220V,60HZ,1 phrase

Machine Size:93x74x87CM

Packing size:70X60X108CM

Printing Workstation:1pc

Machine Size(LxWxH):68x77x87cm

Packing size:70X60X108CM

Net Weight:120KG

Gross Weigh:140KG

  • Product Detail
  • Video

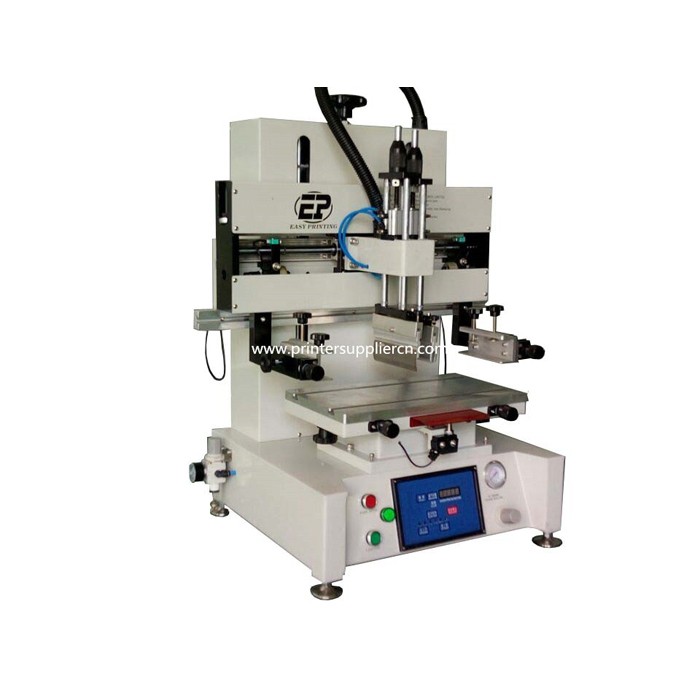

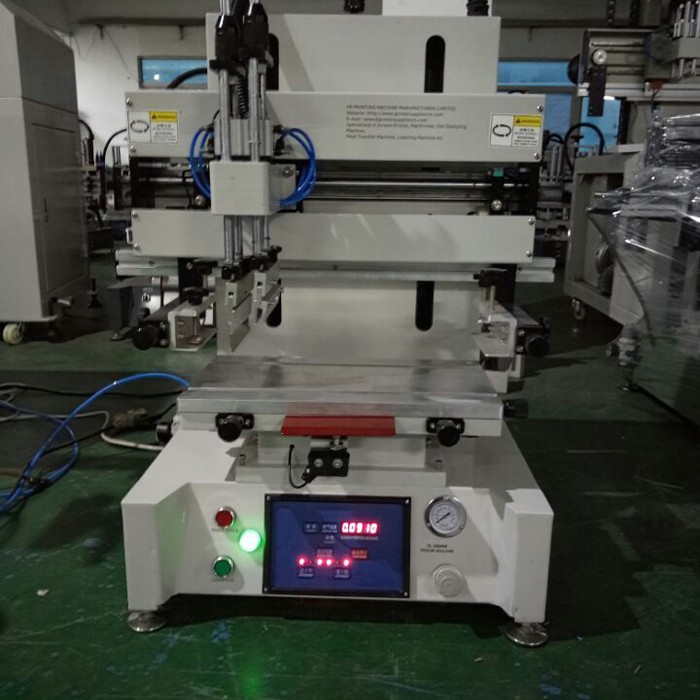

Tabletop Screen Print Printer with T-slot Worktable

The tabletop screen printing machine is adopted vacuum genertator to bring strong adsorptive power without noise. It replace manual screen printing, and solve the problems of un-stable printing quanlity, and slow printing speed by manual screen printing. The machine is small with quick speed, stable function, high precice. It can be made up of screen printing production line in small workshop. It’s special suitable for printing logo on the surface of PVC, paper, nameplate and kinds of film

Features:

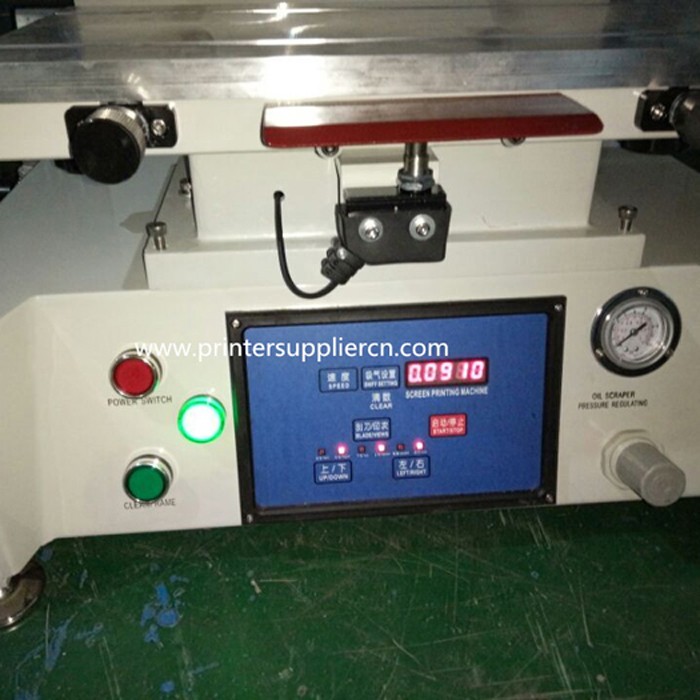

1. SCM IC coordinate light touching panel to complile action programming

2. Auto 4-digit counter built-in, counting printing quantity

3. Airframe adopts coin alloy,and metal coating surface

4. distyle vertical constructure, high precision, steady operation

5. the transeversa stroke can be adjusted, spacing by Taiwan electronic switch

6. the angle of scraper and ink covering blades can be adjusted randomly

7. installing scraper constant pressure equipment to make sure pressure is steady when printing

8. you can regulate work-table back and forth or right and left, and then fastening it

9. you can regulate screen frame back and forth, right and left or level orientatio

10. vacuum stainless steel worktable, it can absorb kinds of film products

11. installing CEC oil buffer on up and down, left and righ to avoid printing shock

12. The machine is running fastly, steably and lower noise.

13. Action model option: fully automatic | semi-automatic | manual

14. Start-up method:panel | foot switches

15. scraper pressure controller:by pressure regulating Valve

16. vertical driving style: pneumatic

17. transeversa driving style: pneumatic

Update Tabletop Screen Print Printer with T-slot Worktable

Update Tabletop Screen Print Printer with T-slot Worktable

PREVIOUS:Automatic Two Sides Heat Transfer Machine for Glass Bottles

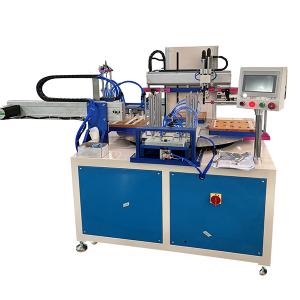

NEXT:Automatic Screen Printer for Straight Ruler
