Mini Screen Printing Machine

Mini Flat Screen Printing Machine Factory

Technical Parameter

Model  No: FA-2035T

Max.Printing Size:200x350mm

Worktable Size:250x450mm

Max. Printing Height of Product:100mm

Power:220/110v 50w

Air Pressure:5-7 bar

Transverse Stroke:350mm

Vertical Stroke:160mm

Transverse & Vertical Driving Style:Pneumatic

Printing Speed:1200pcs /hr

Printing Workstation:1pc

Machine Size(LxWxH):93x74x87cm

Weight:125/175kgs

  • Product Detail
  • Video

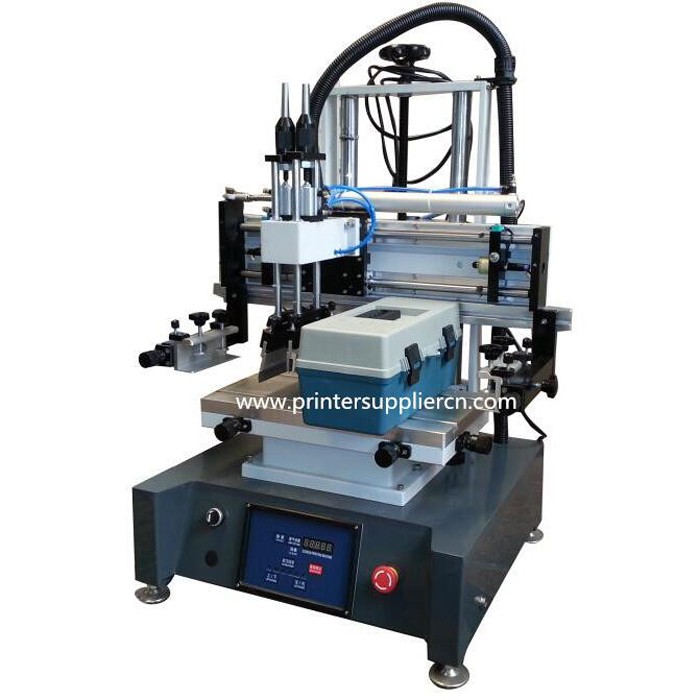

Mini Flat Screen Printing Machine

Feature

ThisMini Flat Screen Printing  is especiallized in printing small and flat article. Germany and Japans pneumatic parts like T-slot worktable and rodless cylinder (400) ensure its maintainence and working efficiency. Suitable for article like mouse pad, Pad, gift , CD box, lens, small plastic products

This screen printing machine could be equipped with two options, one is with T-solt falt and the other with the vaccum falt.

Function

1. SCM IC coordinates light-touch panel to compile programmable actions.

2. Auto 4-digit conter built-in to calculate printing quantity

3. Airframes adopts aluminum casting and with metal coating surface

4. Double cylinders up& down structures ensures printing precisions and stability

5. Worktable ,screen, left & right stroke, spacing distance are all adjustable

6. Pneumatic squeegee constant pressure device ensures the pressure stability during processing.

7. T-slot worktable brings convenience to load and unload jig

8.Up&down , left & right are equiped with Taiwan CEC oil pressure buffer to eliminate working shock.

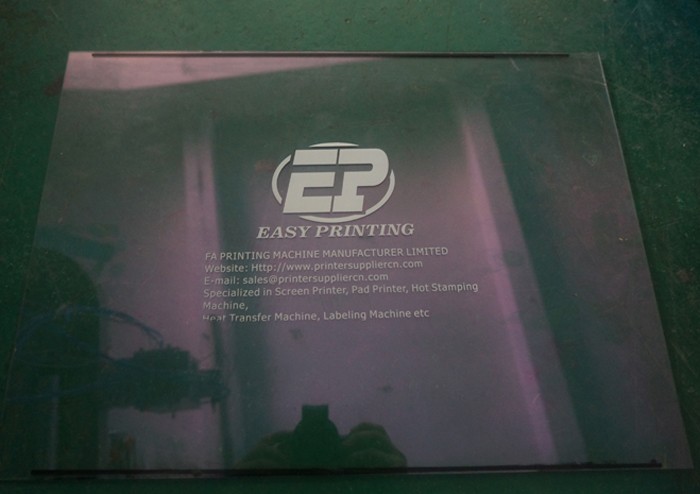

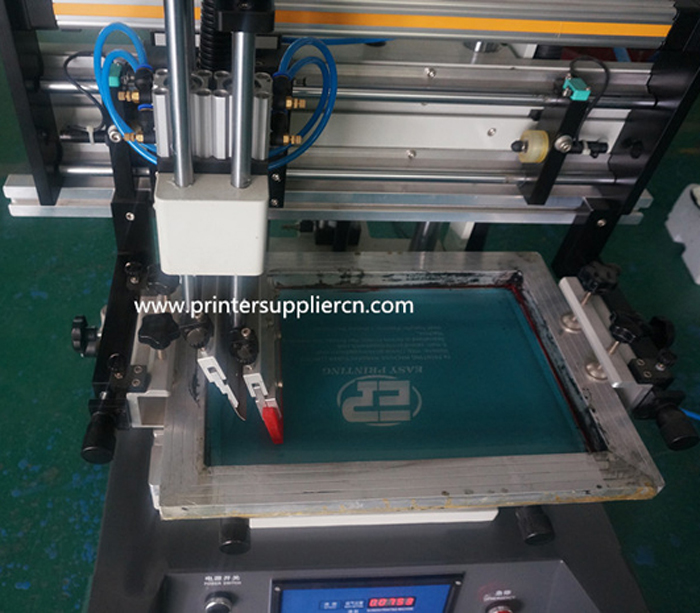

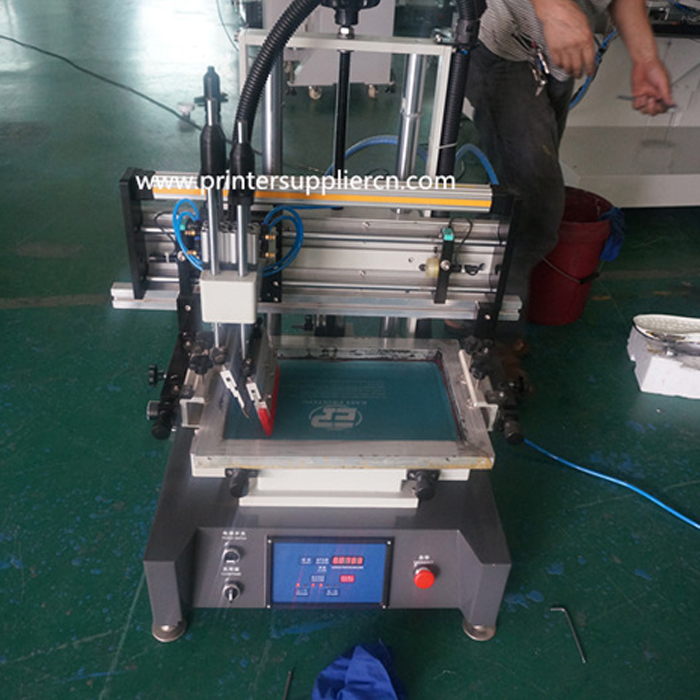

Mini flat screen printing machine factory

Mini flat screen printing machine factory

Mini flat screen printing machine factory
