Foil Cutting Machine

Automatic Hot Stamping Foil Cutting Machine with Stepper Motor

Technical Parameter

Model No: Auto100

Machine Size: L1000*W500*H580mm

Foil Width:5mm -700mm

Max Cutting Outer Diameter:100mm

Foil Core:25mm

Power: 220V

Packing Size: 1180×660×600mm

Machine Weight:66kg

Packing Weight:75kg

Packing Way: Plywood Packing

  • Product Detail
  • Video

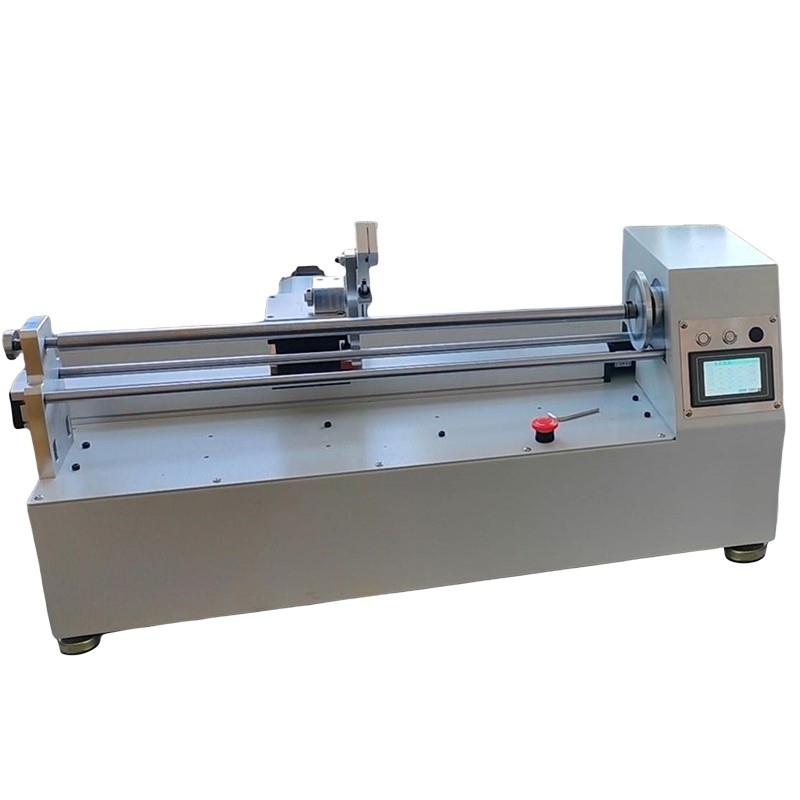

Automatic Hot Stamping Foil Cutting Machine with Stepper Motor

Feature:

The foil cutting machine is with stepper motor system, which enable the machine to cut automatically. Different from manual foil cutting machine, it could cut with more precision and average strength. The cutting effect will be more pretty. Of course, the cutting speed is fastest . Not only save time, but also save the working labor. It is usually adopted to cut different kind of aluminum foil, and also the vinyl paper ,plastic roll etc.

This automatic foil cutting machine is very easy to operate. You just need to set the cutting width and the quantity you need, press start button, then the machine will do automatic cutting (If you need to cut the whole roll, you may enter quantity of 100, and it will automatically perform cutting to the end and go back waiting for starting the second roll cutting )

The foil cutting machine has a blade protection function and a blade sensing system, it could automatically shut down in order to protect worker.

The machine can cut up to 480 meters, with a maximum cutting width of 68 centimeters, maximum cutting coil diameter of 12 centimeters, and minimum cutting width of 2 millimeters.

It has a high-precision dual slide dust-proof module. The precision to be+/-0.1mm,and CNC operating system, The machine can be used with 220 voltage. It works without air compressor.

Automatic Foil Cutter

China foil cutting machine factory
