Mini Screen Printing Machine

Four Stations Rotary Silk Screen Machine for Mobile Case

Technical Parameter

Model  No: FA-2030X4

Max.Printing Size:150x200mm

Max. Printing Height of Product:100mm

Power:220/110v 50w

Air Pressure:5-7 bar

Transverse Stroke:350mm

Vertical Stroke:100mm

Transverse & Vertical Driving Style:Pneumatic

Printing Speed:1500pcs /hr

Printing Workstation:4pcs

Machine Size(LxWxH):80x80x100cm


  • Product Detail
  • Video

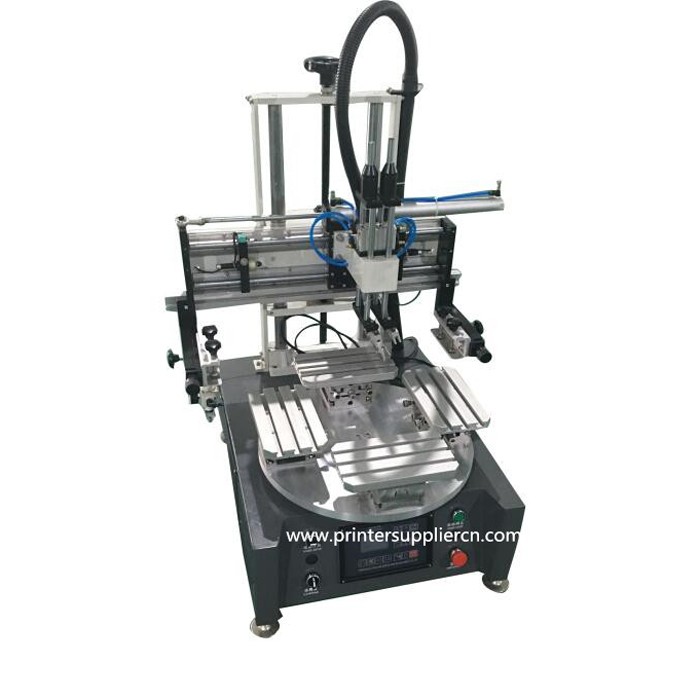

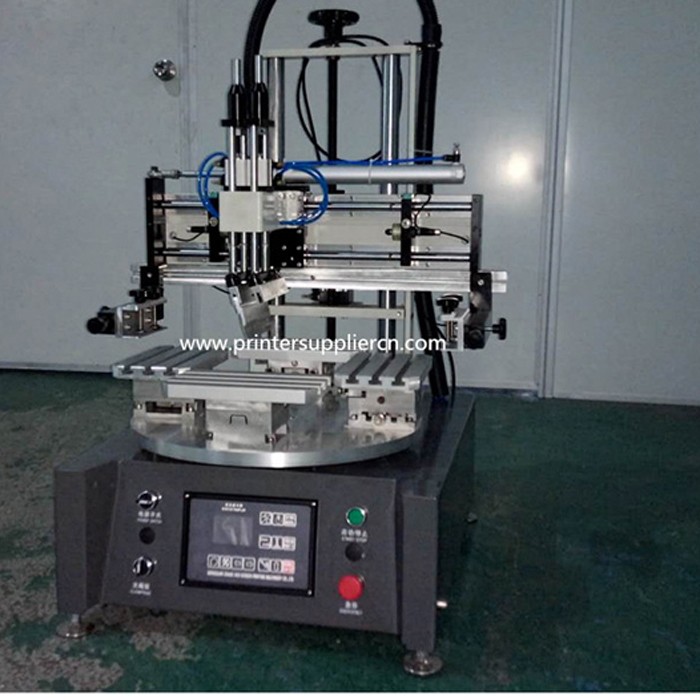

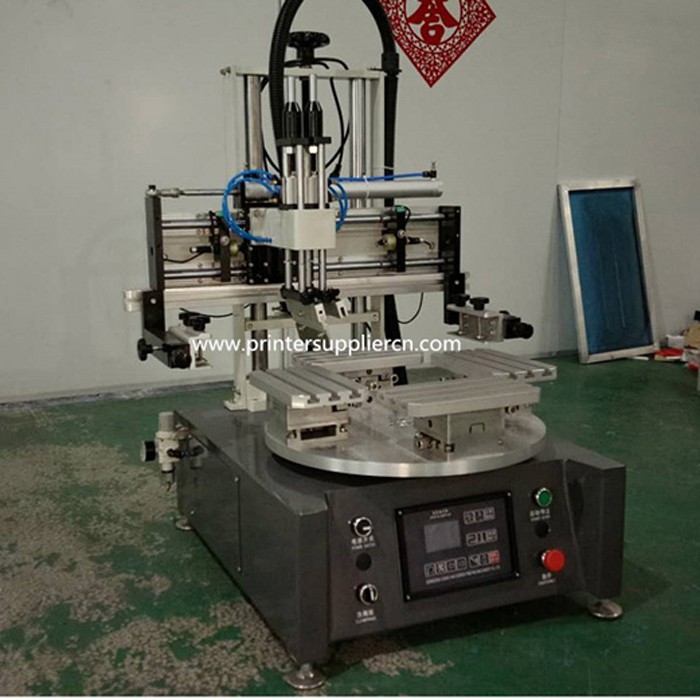

Four Stations Rotary Silk Screen Machine for Mobile Case


The machine is applied in printing mobile phone cover, phone case, pad case etc

The Rotary Silk Screen Machines adopts Mechanical cam separator from Taiwan to make rotary table. The priniter is rotating with stability while proceeding with uploading and downloading the products during printing,with which the machine could work continuously. With its tabletop design and rotary worktables.It is widely used in advertising company, factory etc.


1. SCM IC coordinates light-touch panel to compile programmable actions.

2. Auto 4-digit conter built-in to calculate printing quantity

3. Airframes adopts aluminum casting and with metal coating surface

4. Scraper and ink blades could be adjusted in any different angle

5. Worktable ,screen, left & right stroke, spacing distance are all adjustable

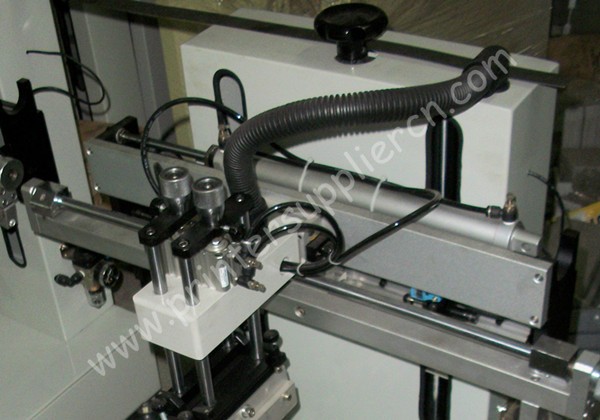

6. Pneumatic squeegee constant pressure device ensures the pressure stability during processing.

7. T-slot worktable brings convenience to load and unload jig

8. Up&down ,left & right are equiped with Taiwan CEC oil pressure buffer to eliminate working shock.
