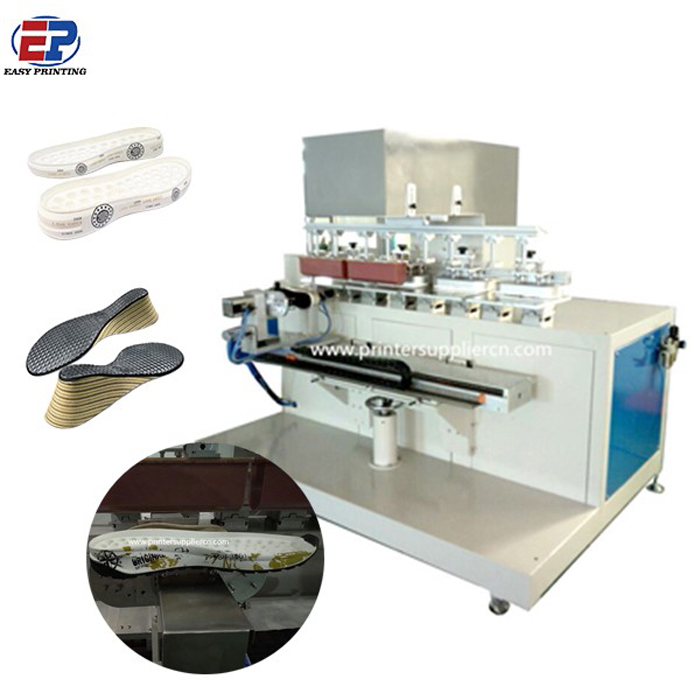

Two Colors Shoes Sole Side Pad Printing Machine with Servo System

Feature

This Two Colors Shoe Sole Pad Printing Machine is characteristic  with below features: It is one of the recommend Pad Printer Machine for Shoe Heels production .

1,Servo motors system--The machines adopts Servo Motors from Delta Taiwan

*Precise detection device: controlled by speed and position closed-loop

*Servo motor is with sufficiently large output and dynamic operation while running at low speed ,  and reduced the intermediate connections while in operating mechanical movement.

*High overload-capable behavior in a wide speed setting range

*High positioning accuracy

*Static torque(at n=0)

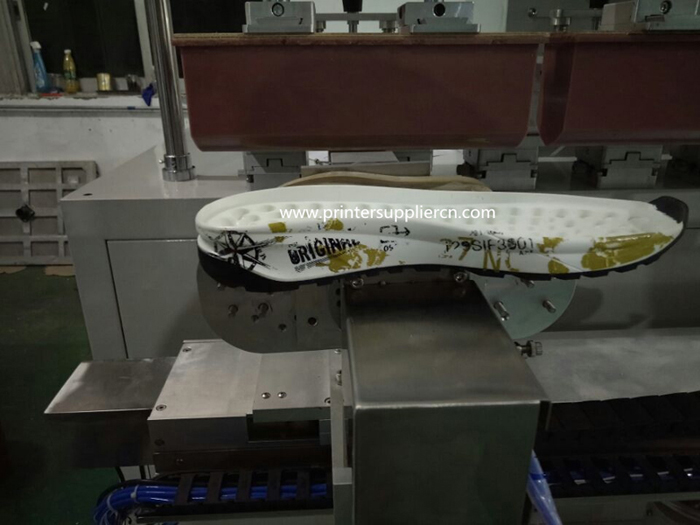

2,Four rubber pads that can do two colors printing at two sides at one time by the movement of tank turntable. The Shoe Sole Pad Printing Machine could print variety of shoe designs. It is developed with its highly automatic operation, adjustable blading stroke and fast working speed. Meanwhile, the printing grains come out to be vivid and exquisite.

3,Built-in Integrated Touch Screen-MCGS

High performance built-in integrated industrial control computer with built-in low power CPU as core

4,Imported Japan PLC-MITSUBISHI

High processing speed to prime directive

5,Imported Japan SMC Sensor, SMC Cylinder, SMC Rotary Cylinder

This machine mainly applied two rotary cylinders, which takes small space and in good dynamic performance, strong anti twisting ability.

*can move to ideal position of automatic switch installation

*SMC rotary cylinder can be installed directly

*Low voltage operation: 0.2MPa/0.15MPa

*Rotary angle can be adjusted as per requirement
