Automatic Screen Printing Machine

Automatic Glass Bottle Screen Printing Machine

Automatic Glass Bottle Screen Printing Machine

Model No.:FA-SZ104

Printing Color:1-4 Colors

Max Diameter:Φ80mm

Max Height:300mm

Printing Speed:900pcs/hr

Power:2.8kw(printing machine,2.2kw(screen plate)

Voltage:220V/50Hz

Air Pressure:5-7bar

Machine Size:2300x1000x1700mm

Weight:1250kgs

3 Color Machine Packing Size:2650x1270x1890mm

4 Color Machine Packing Size:3250x1270x1860mm



  • Product Detail
  • Video

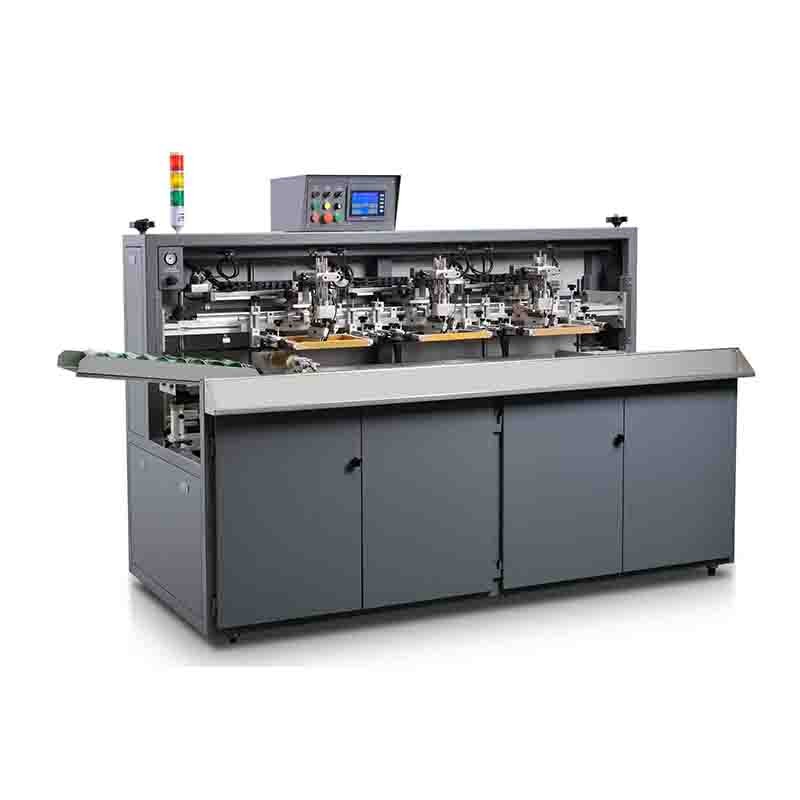

Automatic Glass Bottle Screen Printing Machine

Advantage:

This is a fully automatic bottle silk screen printing machine. Available printing from one to four colours. Especially designed for printing multi-color bottles without orientation hole/registration mark. The auto screen printer is wildly used for printing different shape of bottles, Mainly in domestic, medicine, food packing container printing.  Particularly in glass bottle, like beer bottle, liquor bottle, tumble cup, ceramic vase etc. Firstly, the printing machine solves the registration positioning problem easily with the electric cursor sensor. Secondly, the machinery adopts the high temperature glass ink to print and high temperature stove to melt ink with substrate. Compared with the equipment which requests heating machine for treatment before screen printing, this fully automatic glass bottle screen printer reduces this complex procedure and in a way save labor and increase working efficiency.  It is among the customer top choice nowadays.

Feature:

1.Machine with Aluminum alloy structure frame

2.Adopted PLC system and advanced touch screen technology for smart operation

3.The whole screen printer machine is combined with advanced motors and world famous brand pneumatic part and electron parts, to ensure the machine quality.

4.The printing machine realizes fully automatic feeding, transporting, screen printing, drying, auto-unloading etc. procedure.

5.Designed for printing objects without orientation hole/registration mark, this bottle screen printing equipment could overprint with multi-color with precision and high printing speed.

6.For glass bottle which needs high temperature glass ink, this problem is solved while printing.

7.”No bottles, no printing” principle is applied in this auto bottle silk screen printing equipment

Automatic Glass Bottle Screen Printing Machine

Automatic Glass Bottle Screen Printing Machine
