Feature and Usage to Two Colors Automatic Screen Printing Machine for Balloon

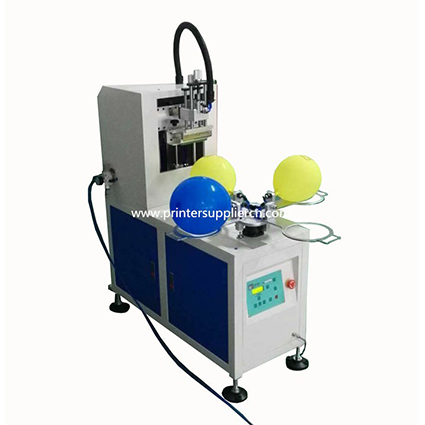

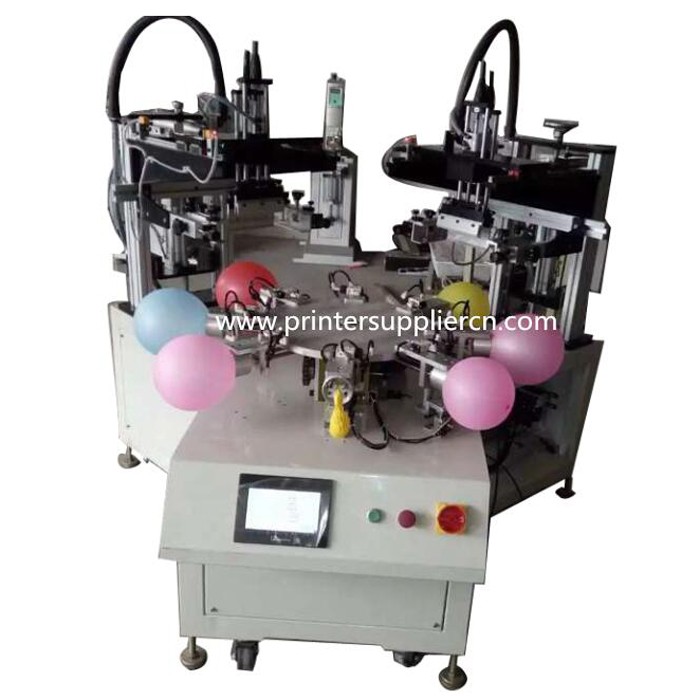

Two Colors Automatic Screen Printing Machine for Balloon

Application

Air balloon, latex balloons, vacuum balloons, advertising balloons

Machine Feature：

This Two Colors Automatic Screen Printing Machine for Balloon is especially designed for printing balloons. The machine adopts Alloy Aluminum material which is lighter and more stable. The screw on the machine which hardness is 12.9 grade more durable and the parts are processed by CNC or worker. Lower electric consumption, high effectivity, and easy operation ,widely applied in balloon printing for advertising, decorations etc

Main features

* Automatic blowing function with non balloon non-blowing function
* Automatic printing head with non balloon non-printing function
* Automatic unloading with non balloon non-unloading
* Air blowing pressure independent control, air pressure adjustable
* With automatic Cold air blowing function can dry ink faster
* Machine every actions can be control independently, Convenient debugging machine

Machine is consisted of following parts:

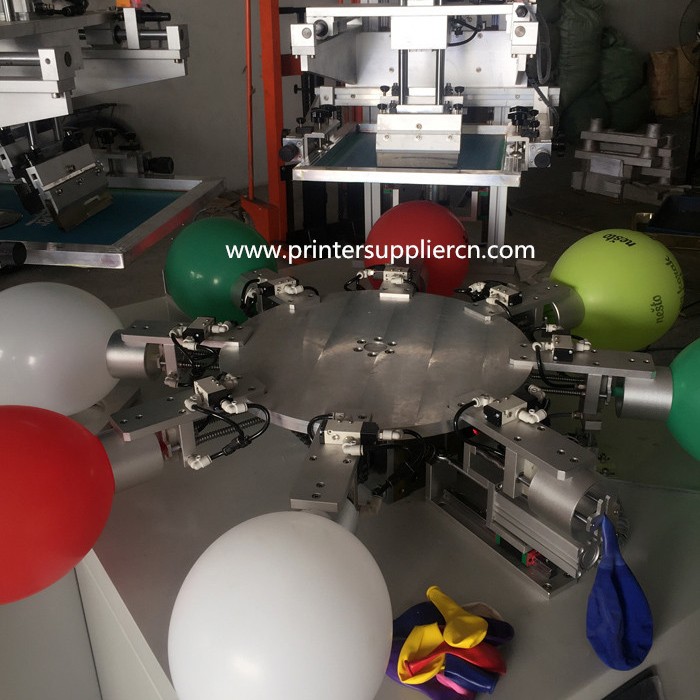

Rotary Worktable with Total 8 Stations

Automatic Cold Drying Device

Separately Control switch(when printing two colors, only choose one side drying, when printing one color on each side, choose two sides drying)

Automatic Unloading Device

Manual Feeding

Automatic Blowing

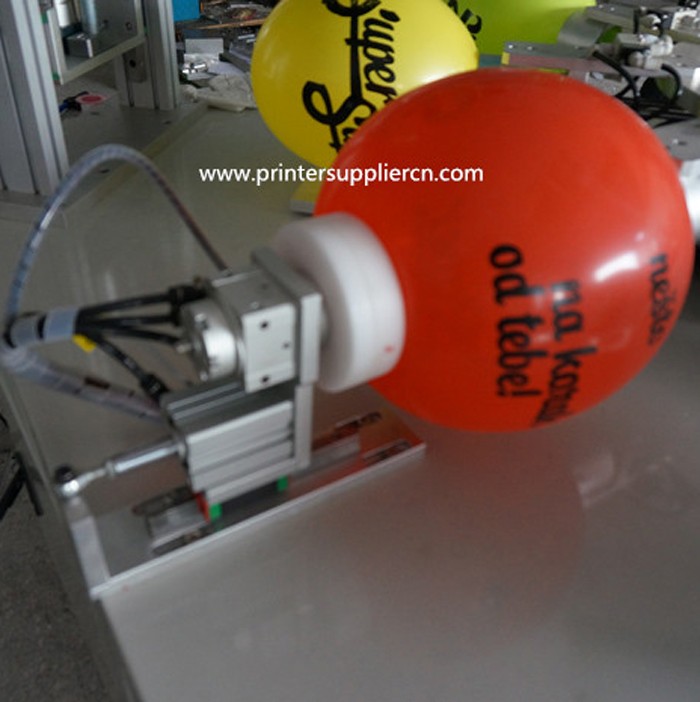

Precision sensor on each station(Can automatically identify whether there are balloons in each station, Design of unique Balloon blowing device and Balloon clamping device to made balloon blowing speed faster and high efficient)

How to Print Balloon Via This Two Colors Automatic Screen Printing Machine for Balloon and What Needs to be Used?

Machine is whole assembled while unpack it. It could be applied to use directly, just remind to use below

1.While 300 mesh screen is generally recommended for latex balloon machine printing, other special balloons such as vacuum and advertising balloons can be adjusted if the pattern printing is not affected.

2. Screen frame generally used aluminum, the screen bonding fixed in the frame, the size of the frame depends on the size of the printed pattern.

3.While using rubber Scraper, usually it should be 30mm-35mm distance from each end of frame ,which ensure the screen can have sufficient flexibility.

3.During printing, the balloon should be fully blown until it is pressed down to the lowest point of the printing frame without exploding. In order to achieve good printing results, the position of the pattern in the screen frame after pressing should be in safe contact with the surface of the balloon. Due to the surface pressure of the balloon during printing, the screen will be further concave. The printing squeegee and ink squeegee can be adjusted to be in contact with the screen, and excessive pressure on the squeegee can easily damage the screen.

What Kind of Ink Should be Used for balloon Printing?

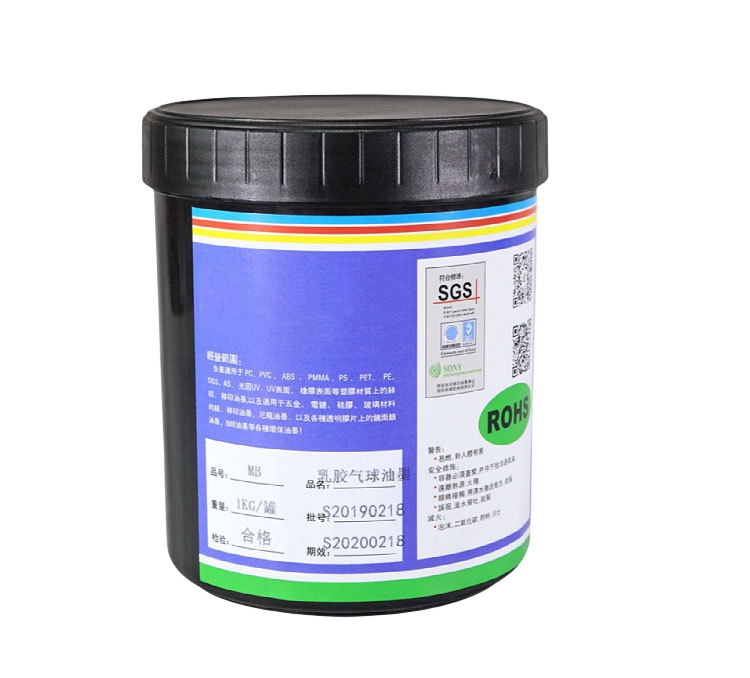

Printing ink usually uses latex ink. Once you tell the ink supplier and inform them the balloon material, they could offer the right ink. If the ink is too thick, it can be mixed with 10% -20% boiling water (diluent) to make the printed pattern clear without sticking to the screen frame. We also sell the ink for balloon. For the details , you may inquiry our sales person.
